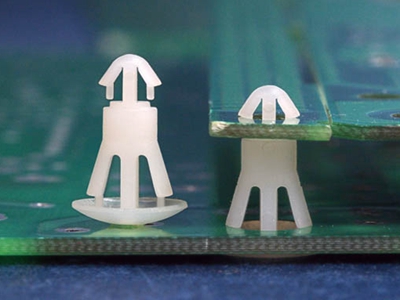

3.5/5.5mm Spacer Support

  • Model: KLS8-2109
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

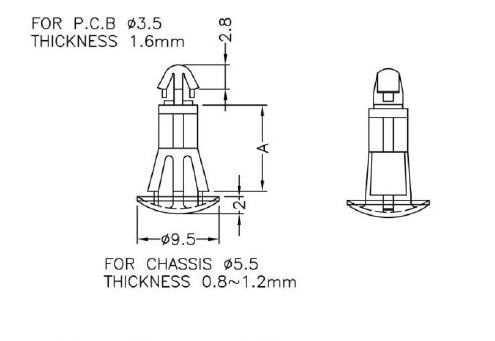

P/N A(mm) UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
L-KLS8-2109-BSP-3.5 3.5 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-05 4.8 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-6.35 6.35 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-07 7 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-08 8 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-10 10 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-11 11 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-13 12.7 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
L-KLS8-2109-BSP-16 15.9 3.5mm 1.6mm 5.5mm 0.8~1.2mm Natural 1000pcs
