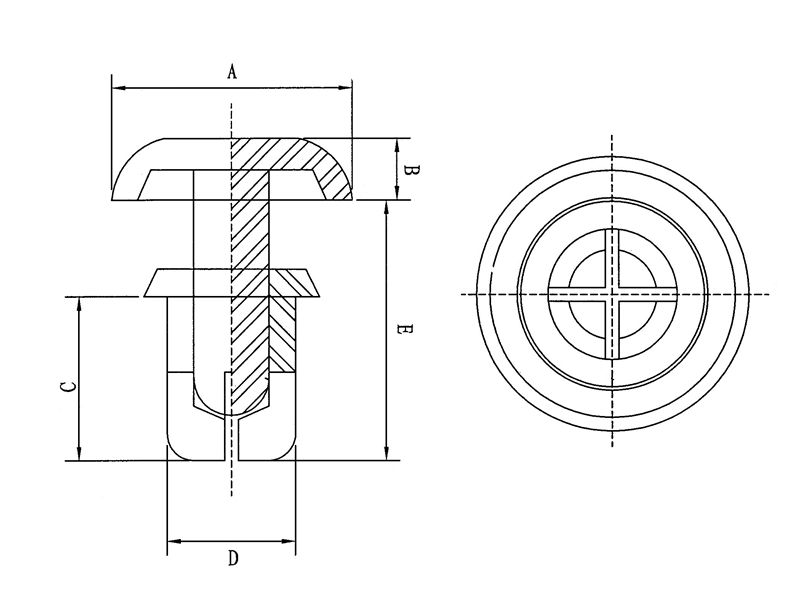

P/N |
Color |
Mounting Holes |
A |
B |
C |
D |
E |
PANEL THICKNESS |
Material |
Packing |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
pcs |
L-KLS8-0217-CSR3.5-3.5-B |
Black |
3.5 |
6.4 |
1.6 |
3.5 |
3.5 |
5.1 |
1.2~2.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-4.5-B |
Black |
3.5 |
6.4 |
1.6 |
4.5 |
3.5 |
5.1 |
2.2~3.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-5.0-B |
Black |
3.5 |
6.4 |
1.6 |
5.0 |
3.5 |
5.1 |
2.7`3.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-5.5-B |
Black |
3.5 |
6.4 |
1.6 |
5.5 |
3.5 |
6.1 |
3.2~4.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-6.0-B |
Black |
3.5 |
6.4 |
1.6 |
6.0 |
3.5 |
6.1 |
3.7~4.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-7.0-B |
Black |
3.5 |
6.4 |
1.6 |
7.0 |
3.5 |
7.1 |
4.7~5.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-8.0-B |
Black |
3.5 |
6.4 |
1.6 |
8.0 |
3.5 |
9.0 |
5.7~6.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-3.5-W |
WHITE |
3.5 |
6.4 |
1.6 |
3.5 |
3.5 |
5.1 |
1.2~2.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-4.5-W |
WHITE |
3.5 |
6.4 |
1.6 |
4.5 |
3.5 |
5.1 |
2.2~3.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-5.0-W |
WHITE |
3.5 |
6.4 |
1.6 |
5.0 |
3.5 |
5.1 |
2.7`3.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-5.5-W |
WHITE |
3.5 |
6.4 |
1.6 |
5.5 |
3.5 |
6.1 |
3.2~4.1 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-6.0-W |
WHITE |
3.5 |
6.4 |
1.6 |
6.0 |
3.5 |
6.1 |
3.7~4.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-7.0-W |
WHITE |
3.5 |
6.4 |
1.6 |
7.0 |
3.5 |
7.1 |
4.7~5.6 |
NYLON |
1000 |
L-KLS8-0217-CSR3.5-8.0-W |
WHITE |
3.5 |
6.4 |
1.6 |
8.0 |
3.5 |
9.0 |
5.7~6.6 |
NYLON |
1000 |
|
|
|
|
|
|
|
|
|
|
|
L-KLS8-0217-CSR4-5.0-B |
Black |
4.0 |
8.0 |
1.8 |
5.0 |
4.0 |
7.1 |
2.5~3.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-6.0-B |
Black |
4.0 |
8.0 |
1.8 |
6.0 |
4.0 |
7.1 |
3.5~4.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-7.0-B |
Black |
4.0 |
8.0 |
1.8 |
7.0 |
4.0 |
7.1 |
4.5~5.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-8.0-B |
Black |
4.0 |
8.0 |
1.8 |
8.0 |
4.0 |
9.0 |
5.5~6.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-9.0-B |
Black |
4.0 |
8.0 |
1.8 |
9.0 |
4.0 |
11.0 |
6.5~7.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-10-B |
Black |
4.0 |
8.0 |
1.8 |
10.0 |
4.0 |
11.0 |
7.5~8.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-12-B |
Black |
4.0 |
8.0 |
1.8 |
12.0 |
4.0 |
14.0 |
9.0~10.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-5.0-W |
WHITE |
4.0 |
8.0 |
1.8 |
5.0 |
4.0 |
7.1 |
2.5~3.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-6.0-W |
WHITE |
4.0 |
8.0 |
1.8 |
6.0 |
4.0 |
7.1 |
3.5~4.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-7.0-W |
WHITE |
4.0 |
8.0 |
1.8 |
7.0 |
4.0 |
7.1 |
4.5~5.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-8.0-W |
WHITE |
4.0 |
8.0 |
1.8 |
8.0 |
4.0 |
9.0 |
5.5~6.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-9.0-W |
WHITE |
4.0 |
8.0 |
1.8 |
9.0 |
4.0 |
11.0 |
6.5~7.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-10-W |
WHITE |
4.0 |
8.0 |
1.8 |
10.0 |
4.0 |
11.0 |
7.5~8.5 |
NYLON |
1000 |
L-KLS8-0217-CSR4-12-W |
WHITE |
4.0 |
8.0 |
1.8 |
12.0 |
4.0 |
14.0 |
9.0~10.5 |
NYLON |
1000 |
|
|
|
|
|
|
|
|
|
|
|
L-KLS8-0217-CSR5-4.5-B |
Black |
5.0 |
9.0 |
2.2 |
4.5 |
5.0 |
6.5 |
1.5~2.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-5.5-B |
Black |
5.0 |
9.0 |
2.2 |
5.5 |
5.0 |
6.5 |
2.5~3.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-6.5-B |
Black |
5.0 |
9.0 |
2.2 |
6.5 |
5.0 |
8.5 |
3.5~4.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-7.5-B |
Black |
5.0 |
9.0 |
2.2 |
7.5 |
5.0 |
8.5 |
4.5~5.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-8.5-B |
Black |
5.0 |
9.0 |
2.2 |
8.5 |
5.0 |
10.5 |
5.5~6.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-4.5-W |
WHITE |
5.0 |
9.0 |
2.2 |
4.5 |
5.0 |
6.5 |
1.5~2.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-5.5-W |
WHITE |
5.0 |
9.0 |
2.2 |
5.5 |
5.0 |
6.5 |
2.5~3.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-6.5-W |
WHITE |
5.0 |
9.0 |
2.2 |
6.5 |
5.0 |
8.5 |
3.5~4.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-7.5-W |
WHITE |
5.0 |
9.0 |
2.2 |
7.5 |
5.0 |
8.5 |
4.5~5.5 |
NYLON |
1000 |
L-KLS8-0217-CSR5-8.5-W |
WHITE |
5.0 |
9.0 |
2.2 |
8.5 |
5.0 |
10.5 |
5.5~6.5 |
NYLON |
1000 |
