3.5/3.5mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

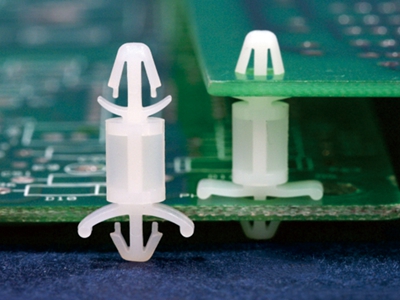

Application: the fixed PC board on the boards, free tools

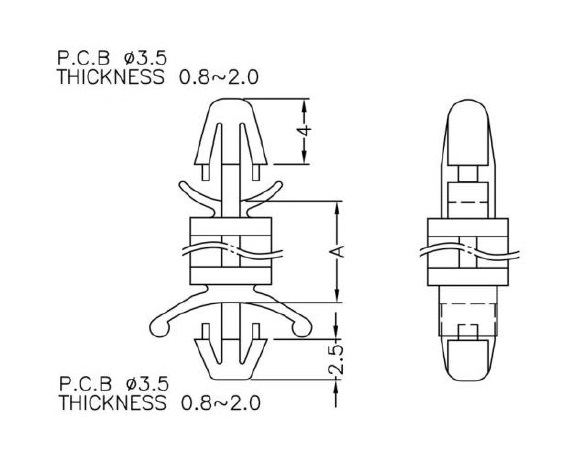

| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | mm | pcs | ||
| L-KLS8-0234D-BH-03 | 3.2 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 2000 |
| L-KLS8-0234D-BH-04 | 4.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 2000 |
| L-KLS8-0234D-BH-05 | 4.8 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-06 | 6.4 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-07 | 7.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-08 | 8.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-09 | 9.6 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-11 | 11.2 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-12 | 12.7 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-14 | 14.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-16 | 16.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-18 | 18.0 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-19 | 19.1 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
| L-KLS8-0234D-BH-27 | 27.5 | 3.5 | 0.8~2.0 | 3.5 | 0.8~2.0 | Natural | 1000 |
