3.5/3.5mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

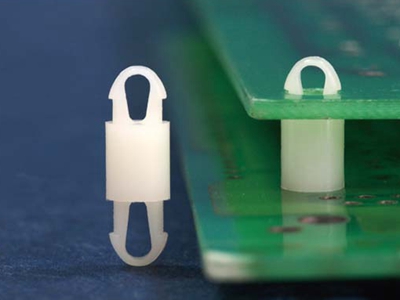

Application: the fixed PC board on the boards, free tools

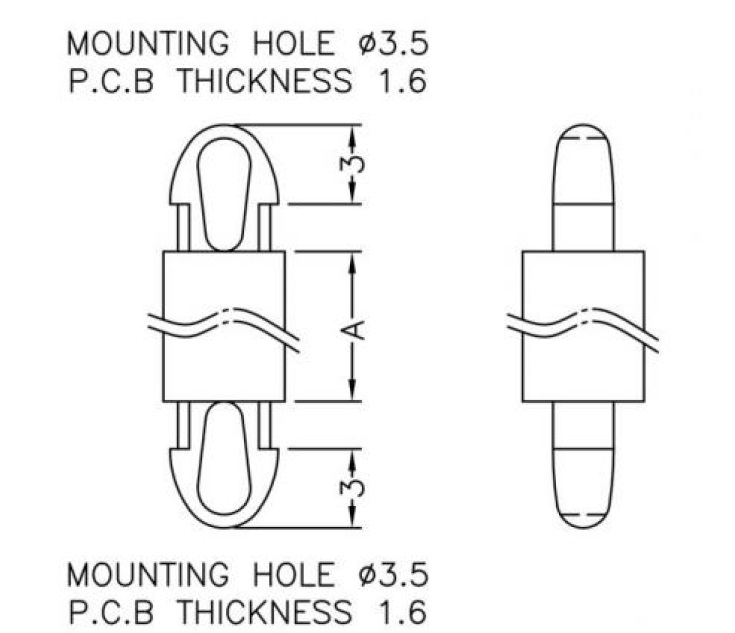

| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | mm | pcs | ||
| L-KLS8-0237G-LF-02 | 2.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-03 | 3.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-04 | 4.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-05 | 5.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-06 | 6.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-07 | 7.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-08 | 8.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-10 | 10.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-12 | 12.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-14 | 14.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-16 | 16.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-18 | 18.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-20 | 20.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
| L-KLS8-0237G-LF-22 | 22.0 | 3.5 | 1.6 | 3.5 | 1.6 | Natural | 1000 |
