3.2/4.8mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

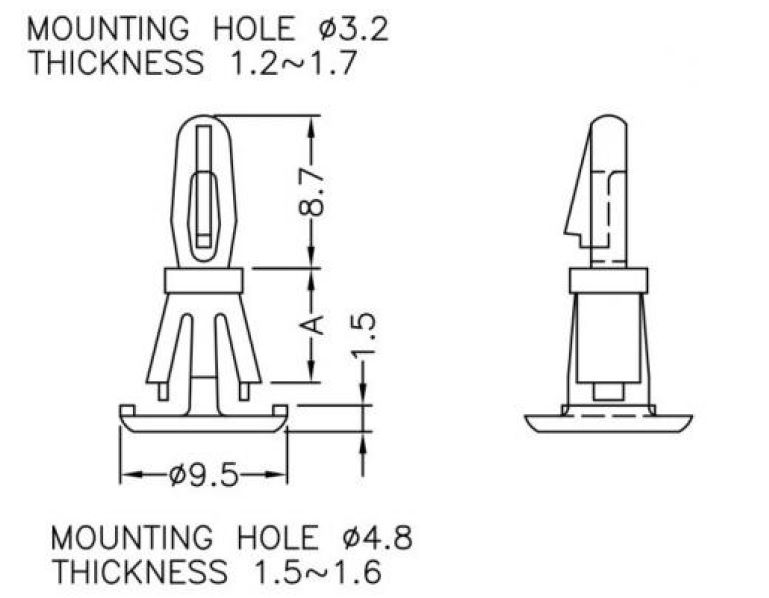

| P/N | A(mm) | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| L-KLS8-2110-BSQ-6.5 | 6.5 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-08 | 7.9 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-9.7 | 9.7 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-11 | 11.1 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-13 | 12.7 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-14 | 14.3 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
| L-KLS8-2110-BSQ-16 | 15.9 | 3.2mm | 1.2~1.6mm | 4.8mm | 1.2~1.6mm | Natural | 1000pcs |
