3.2/3.2mm Spacer Support

  • Model: KLS8-0202A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

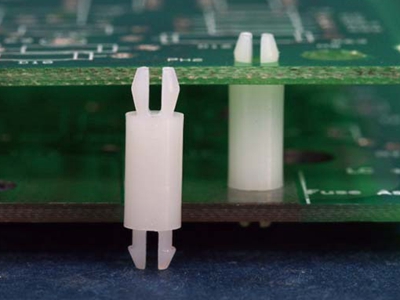

Application: the fixed PC board on the boards, free tools

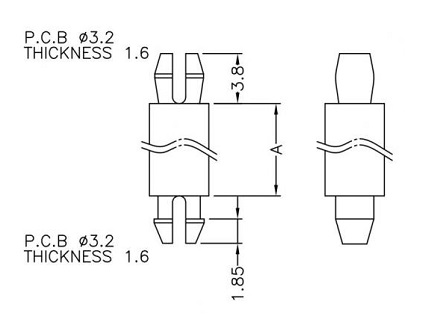

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
  mm mm mm mm mm   pcs
L-KLS8-0202A-SP-03 3.2 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-05 4.8 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-06 6.4 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-08 7.9 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-8.5 8.5 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-9.5 9.5 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-10 10.0 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-11 11.1 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-13 12.7 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-14 14.3 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-16 15.9 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-17 17.5 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-19 19.1 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-20 20.6 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-21 21.0 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-22 22.2 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-25 25.4 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-27 27.0 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-28 28.5 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-29 29.2 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-34 34.9 3.2 1.6 3.2 1.6 Natural 1000
L-KLS8-0202A-SP-38 38.1 3.2 1.6 3.2 1.6 Natural 1000
