Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

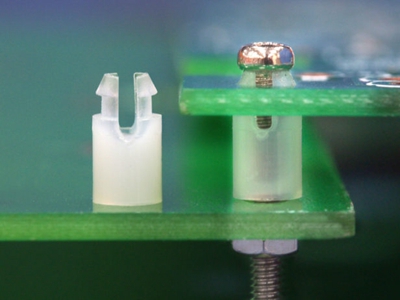

Application: the fixed PC board on the boards, free tools
P/N | A | UPPER | Color | Packing | |||
PCB Hole | PCB THICKNESS | ||||||
mm | mm | mm | pcs | ||||
L-KLS8-0221-BLH-02 | 2.0 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-2.5 | 2.5 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-03 | 3.0 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-3.5 | 3.5 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-04 | 4.0 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-4.5 | 4.5 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-05 | 5.0 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-5.5 | 5.5 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-06 | 6.0 | 3 | 1.6 | Natural | 2000 | ||
L-KLS8-0221-BLH-08 | 8.0 | 3 | 1.6 | Natural | 2000 |
