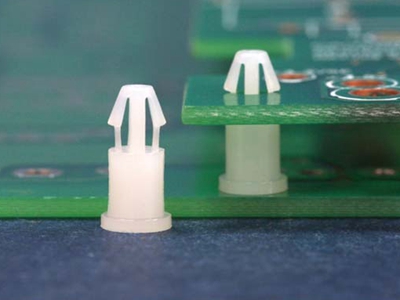

3.0mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

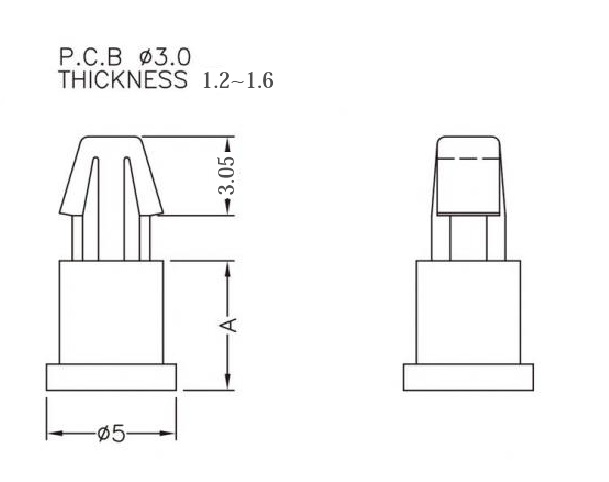

| P/N | A | UPPER | Color | Packing | |||
| PCB Hole | PCB THICKNESS | ||||||
| mm | mm | mm | pcs | ||||
| L-KLS8-0270-BSD-2.0 | 2.0 | 3.0 | 1.2~1.6 | Natural | 2000 | ||
| L-KLS8-0270-BSD-2.5 | 2.5 | 3.0 | 1.2~1.6 | Natural | 2000 | ||
| L-KLS8-0270-BSD-2.7 | 2.7 | 3.0 | 1.2~1.6 | Natural | 2000 | ||
| L-KLS8-0270-BSD-03 | 3.0 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-3.2 | 3.2 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-3.5 | 3.5 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-04 | 4.0 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-4.5 | 4.5 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-05 | 5.0 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-06 | 6.0 | 3.0 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-6.2 | 6.2 | 3 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-6.5 | 6.5 | 3 | 1.2~1.6 | Natural | 1000 | ||
| L-KLS8-0270-BSD-9.5 | 9.5 | 3 | 1.2~1.6 | Natural | 1000 | ||
