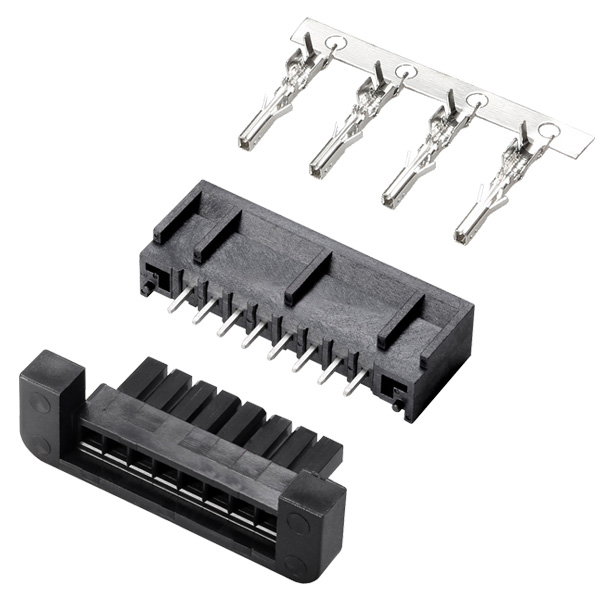

3.0mm Pitch MOLEX Micro-Fit BMI Wire To Board Connector
- Product Details
3.0mm Pitch MOLEX Micro-Fit BMI Wire To Board Connector
Order information:
KLS1-XM2-3.00-1×02-H
Pitch:3.0mm
1-Single layer
02-No.of 02~12 pins

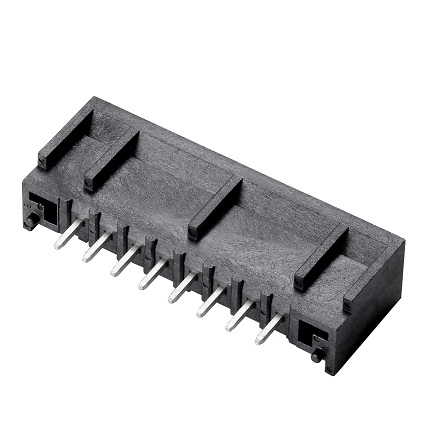

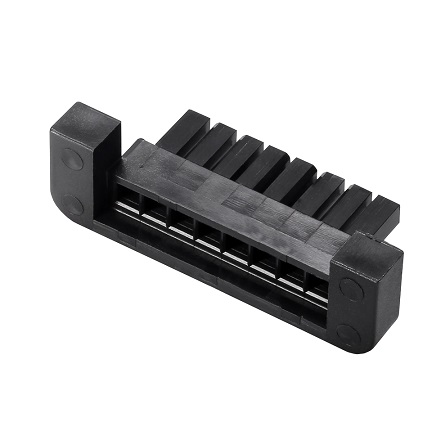

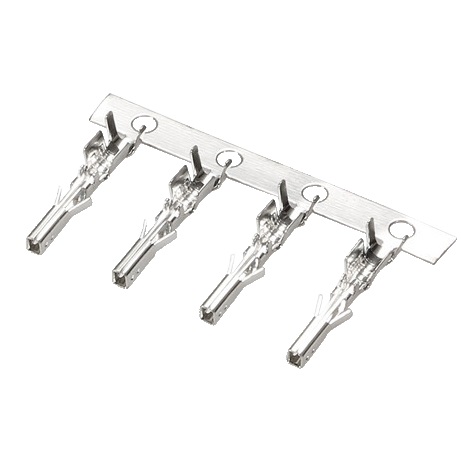

H-Housing FT-Female Terminal S-Straight male pin
Specifications
◆Material: PA66/LCP,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:5.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#20~#24
