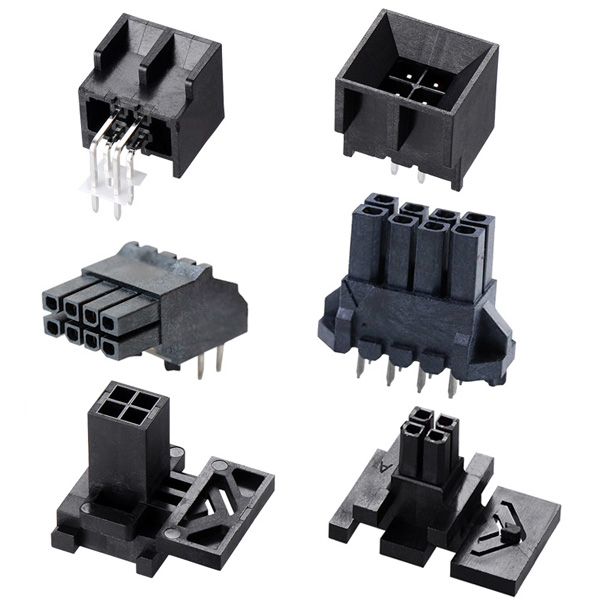

3.0mm Pitch MOLEX Micro-Fit 44133/44300 Wire To Board Connector
- Product Details
3.0mm Pitch MOLEX Micro-Fit 44133/44300 Wire To Board Connector
Order information:
KLS1-XM3-3.00-2×02-H
Pitch:3.0mm
2-Double layer
02-No.of 04~24 pins

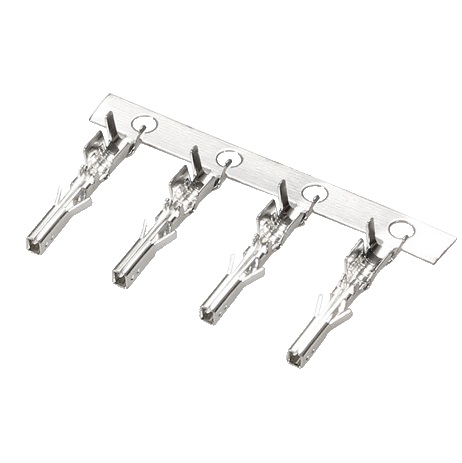

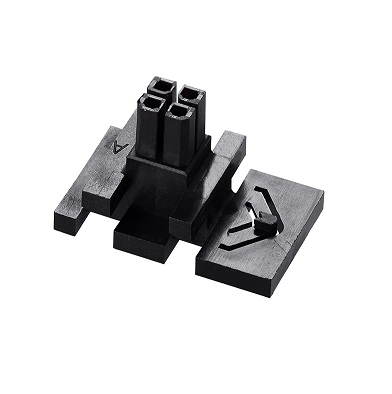

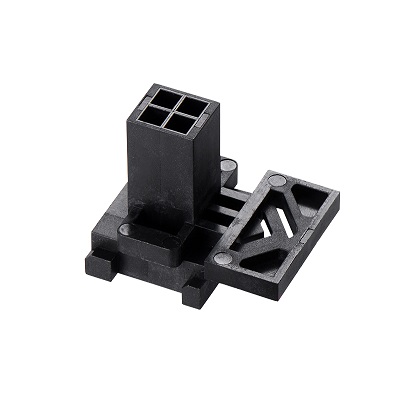

MH FH-Housing MT FT-Terminal S1 s2-Straight male pin R1 R2-Right angle male pin
Specifications
◆Material: PA66/LCP,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:5.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#20~#24
