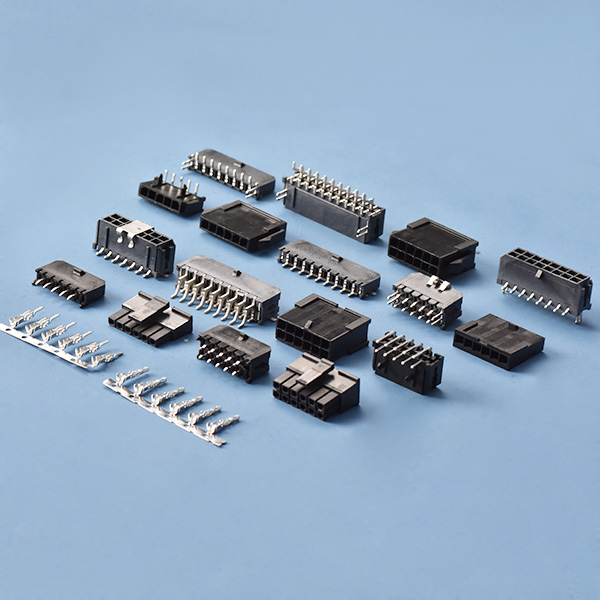

3.0mm Pitch Molex Micro Fit 3.0 43020 43025 43045 43030 43031 43645 43640 Wire To Board Connector
- Product Details
3.0mm Pitch Molex Micro Fit 3.0 43020 43025 43045 43030 43031 43645 43640 Wire To Board Connector
Order information:
KLS1-XM1-3.00-1×02-MH
Pitch:3.0mm
1-Single layer 2-Double layer
02-No.of 02~24 pins

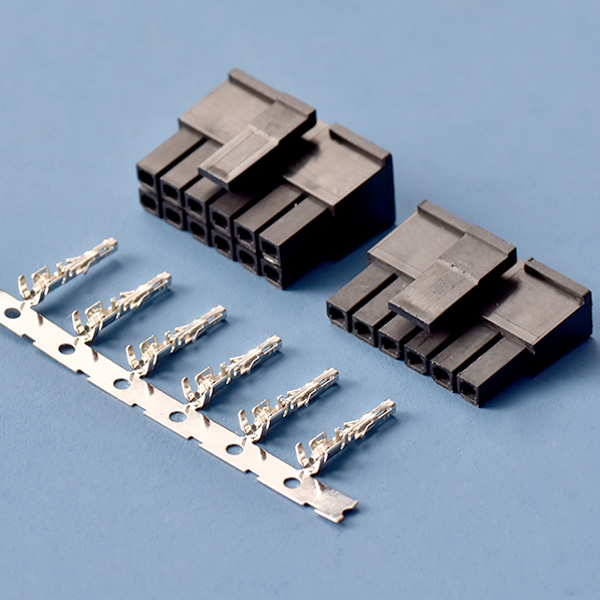

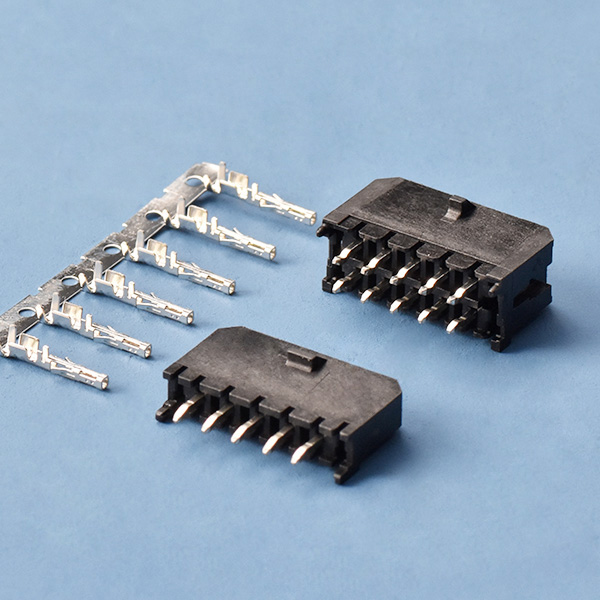

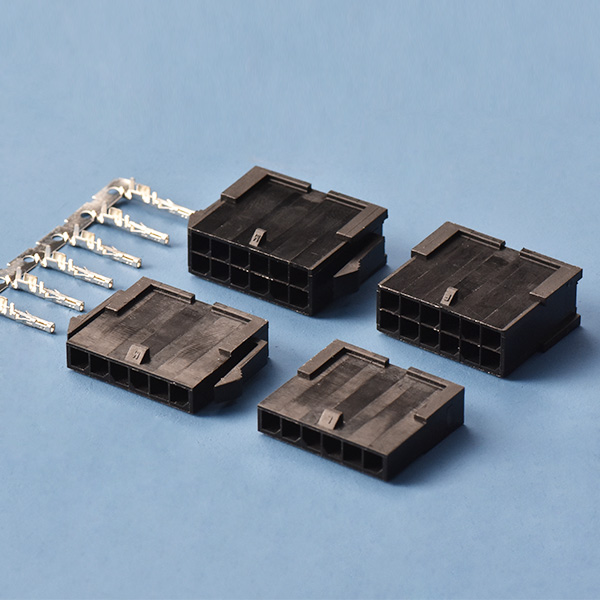

MH FH FHN-Housing MT FT-Terminal S SD-Straight male pin R RC-Right angle male pin VT VMT-Vertical SMT Pin RT RMT-Horizontal SMT Pin
Specifications
◆Material: PA66/LCP,UL 94V-2/UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:5.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#20~#24
