Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

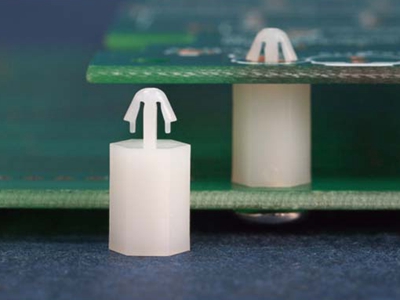

Application: the fixed PC board on the boards, free tools

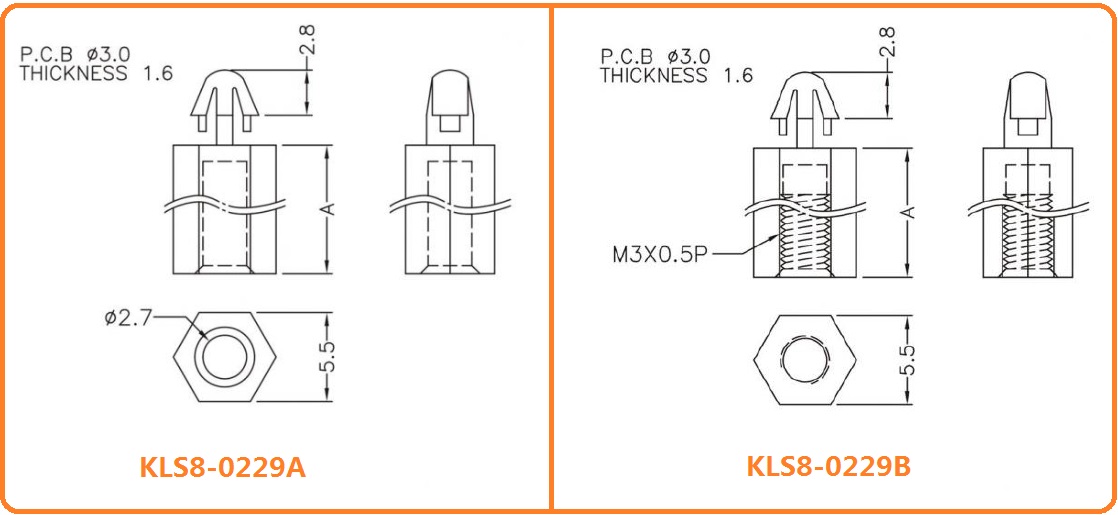

P/N | A | UPPER | CHASSIS | Color | Packing | ||
PCB Hole | PCB THICKNESS | THERD | |||||
mm | mm | mm | mm | pcs | |||
L-KLS8-0229A-BUR-05 | 5.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-06 | 6.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-07 | 7.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-08 | 8.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-09 | 9.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-10 | 10.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-11 | 11.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-12 | 12.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-13 | 13.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-14 | 14.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-15 | 15.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-16 | 16.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-17 | 17.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-18 | 18.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-19 | 19.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-20 | 20.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-22 | 22.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229A-BUR-26 | 26.0 | 3.0 | 1.6 | 2.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-05 | 5.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-06 | 6.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-07 | 7.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-08 | 8.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-09 | 9.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-10 | 10.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-11 | 11.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-12 | 12.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-13 | 13.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-14 | 14.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-15 | 15.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-16 | 16.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-17 | 17.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-18 | 18.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-19 | 19.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-20 | 20.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-22 | 22.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 | |
L-KLS8-0229B-BUT-26 | 26.0 | 3.0 | 1.6 | M3x0.5 | Natural | 2000 |
