PCB Spacer Supports

Home > Products > Wiring Accessories > PCB Spacer Supports > Details

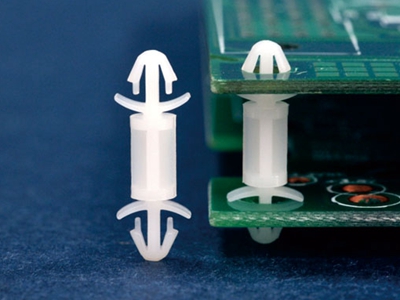

3.0/3.0mm Spacer Support

  • Model: KLS8-0234
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

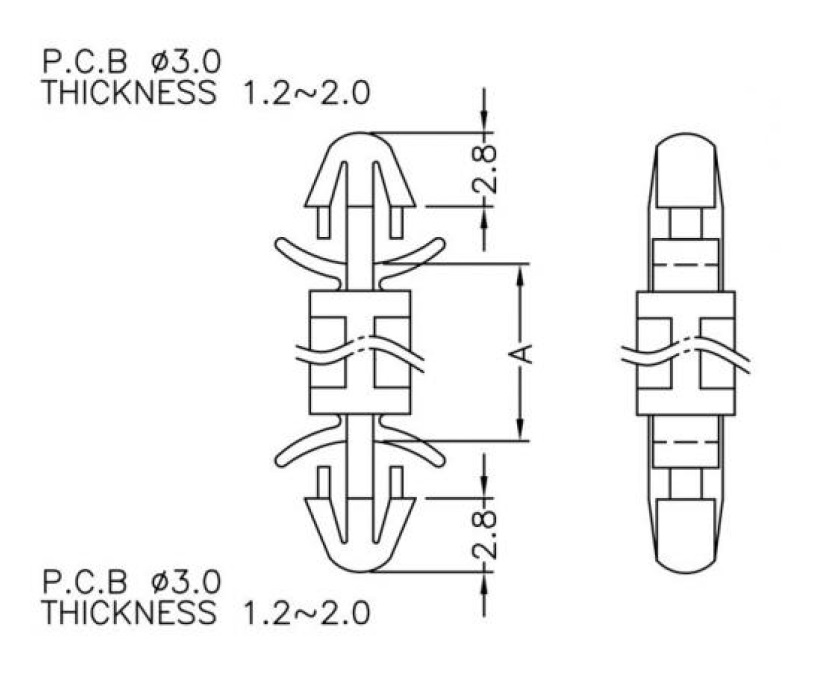

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0234-BLG-03 3.2 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-04 4.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-05 5.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-06 6.3 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-07 7.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-08 8.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-09 9.5 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-11 11.2 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-12 12.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-15 15.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-16 16.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-17 17.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-20 20.2 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-22 22.0 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
L-KLS8-0234-BLG-25 25.4 3.0 1.2~2.0 3.0 1.2~2.0 Natural 1000
