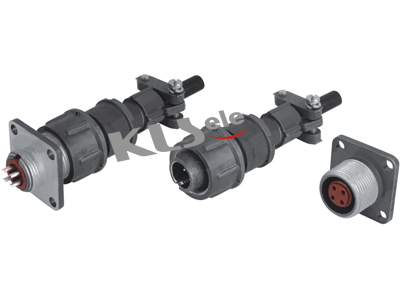

Circular Connector With Russia Standard 2PM Type
KLS15-RCS02-2PM Russian type military connector, whichis made according to
the Russian Military Standard, widely used for the electricity connection and signal
transfer, it’s special structure and design can avoid the shortage of other similar
connectors, for example, the screw & hole for the wire on the outer shell, it can used
more convenient. The inner insulation and pins structure are also enhance its stability
and reliability, this series of connectors can also be waterproof, so it can used on
outdoor equipments, Its special design and characteristics have got good
reputation from the market.

ORDER INFORMATION:
KLS15-RCS02-2PM-14-4TK/ZJ

2PM-   2PM series connector
14-  Shell size: 14,18,22,24
4-    Number of contacts： 4,7,10,19
TK-   TK-Plug Socket，ZJ-Flange Receptacle Pin

Technical characteristics
Operating voltage: 400V AC
Rated current:           φ1.0-5A                  φ1.5-10A
Contact Resistance :φ1.0-0.005Ω         φ1.5-0.0025Ω
Insulation resistance:Normal:20MΩ Min.           Moistheat:2MΩ Min.
Temperature: -60ºC~+150ºC
Atmosphere:133.37×10-12 Pa
Vibration:  10~200Hz   10g
Endurance : 500cycles
