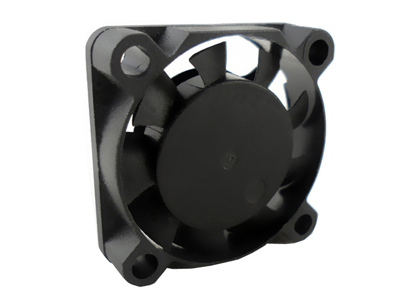

SIZE: 25x25x7mm
CONSTRUCTION:
Glass fiber reinforced plastic,Impeller and housing PTB
OPERATING TEMPERATURE: -10ºC~+70ºC
STORAGE TEMPERATURE: -30ºC~+75ºC
INSULATION RESISTANCE:
10meg Ohm min,at 500 VDC (between frame and terminal)
DIELECTRIC STRENGTH:
5mA max,at 500 VAC 60Hz one minute (between frame and terminal)
