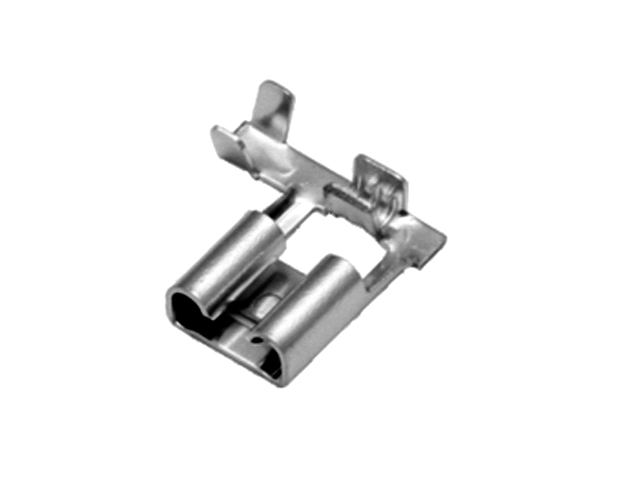

250 Type FLAG Female, TAB=0.80mm, 18~22AWG
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
| W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
| L-KLS8-DFR07-2500800 | Brass | Tin | 7.30 | 6.2 | 12.5 | 0.40 | 18~22 | 5000 | TAB=0.80mm | ||||
