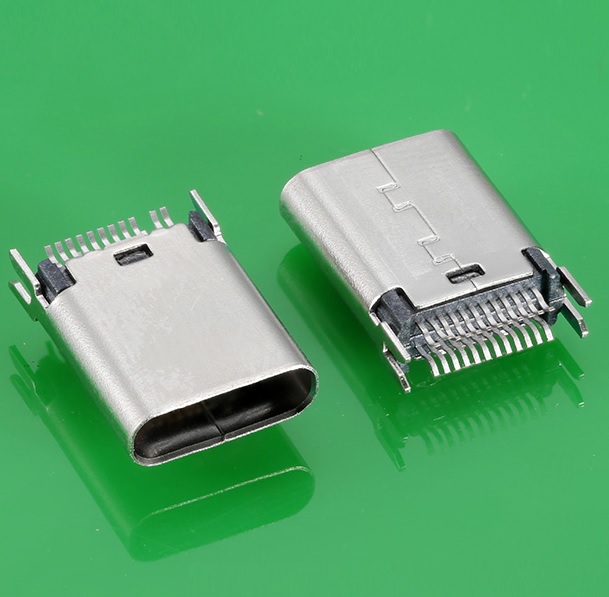

24P Vertical Splint L=14.35mm USB 3.1 type C connector female socket (T=0.80 OR 1.00mm)

Electrical
Current Rating: 1.5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ  Min.

Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles
