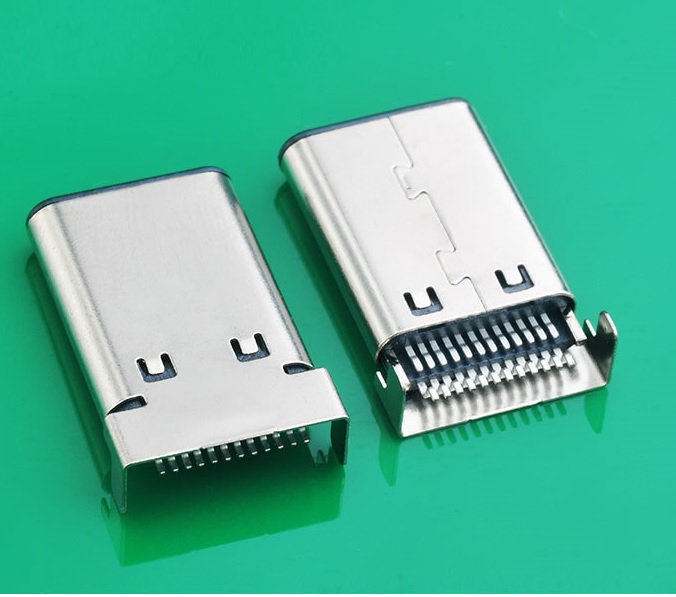

24P Vertical SMD L=10.2mm USB 3.1 type C connector male plug

  • Model: KLS1-5470
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

24P Vertical SMD L=10.2mm USB 3.1 type C connector male plug

Electrical
Current Rating:3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ  Min.

Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 6N~20N
Durability:10000 Cycles
