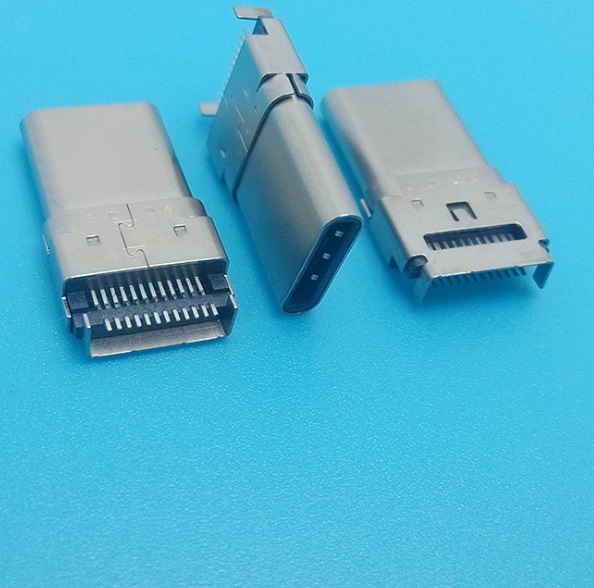

24P SMD L=15.5mm USB 3.1 type C connector male plug

  • Model: KLS1-5472
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

24P SMD L=15.5mm USB 3.1 type C connector male plug

NOTES:
1. MATERIAL:
  1-1.SHELL: SUS316 1/2H T=0.15mm
  1-2.HOUSING: PA9T UL94V-0 BLACK
  1-3.TERMINAL: C7025 TM03 T=0.15mm
  1-4.SPRING: SUS301R-H T=0.08mm
  1-5.METAL PLATE: SUS301R-H T=0.35mm
2. PLATING:
  2-1.TERMINAL: GOLD PLATED
  2-2.SHELL: NICKEL PLATED 60μ”MIN.
  2-3.SPRING: 40~100μ” NICKEL PLATED
  2-4.METAL PLATE: 40~100μ” NICKEL PLATED
  2-5.AFTER SHELL: 40~100μ” NICKEL PLATED
3. MECHANICAL PERFORMANCE
  3-1.INSERTION FORCE: 5N~20N.
  3-2.WITHDRAWAL FORCE: INITIAL 8N~20N 1000 MATING CYCLES AFTER 6~20N.
  3-3.DURABILITY: 10000 CYCLES.
4. ELECTRICAL PERFORMANCE
  4-1. CURRENT RATING: 5A.
  4-2. LLCR: CONTACT: 40mΩ MAX.
  4-3. INSULATION RESISTANCE: 100MΩ MIN.
  4-4. DIELECTRIC WITHSTAND VOLTAGE: 100V AC
5. OPERATING TEMPERATURE RANGE: -55°C~105°C(WITHOUT LOSS FUNCTION).
6. IR REFLOW:
  THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
7. RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
