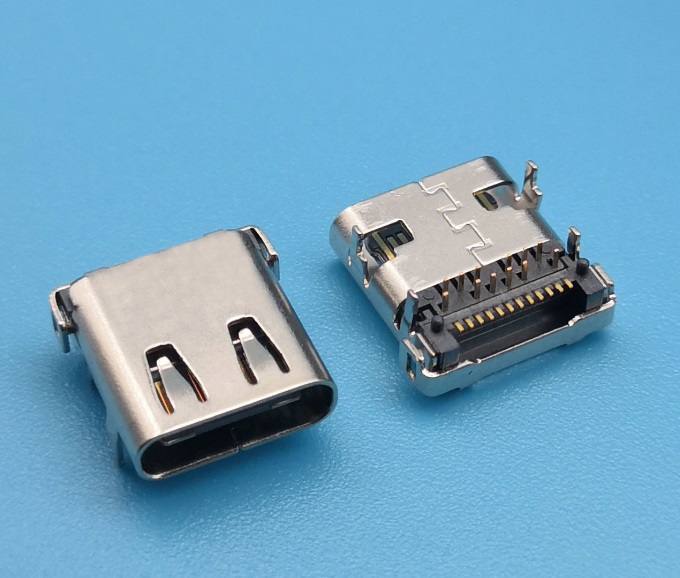

24P DIP+SMD L=10.0mm USB 3.1 type C connector female socket

Electrical
Current Rating: 3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

KLS1-5424.pdf
