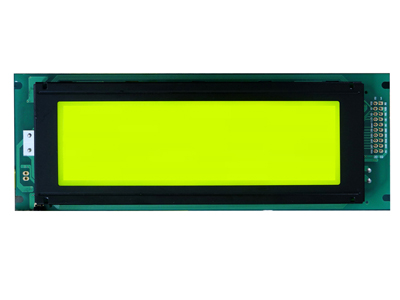

240×128 Graphic Type LCD Module
- Product Details
Display: 240×128 dot-matrix Type
OUTLINE: 144.0×104.0x14.5
V.A.: 114.0×64.0
Dot: 0.40×0.40
View angle:6 O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/128 duty cycle, 1/12 Bias
Backlight type: Yellow-green/bottom Backlight
Controller: T6963C or equivalent
Operating Temp.:-20ºC～+70ºC
