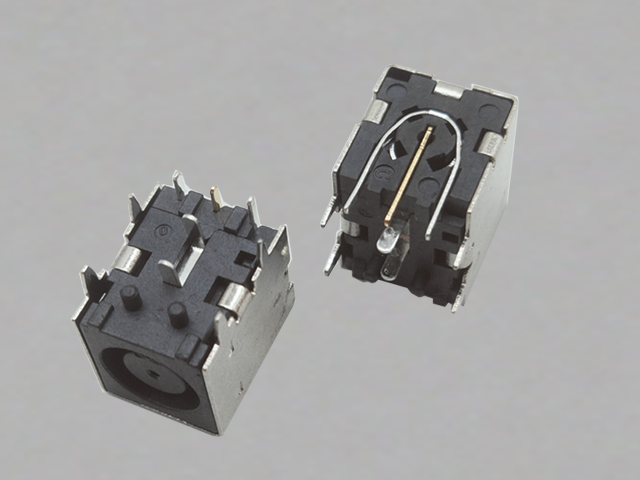

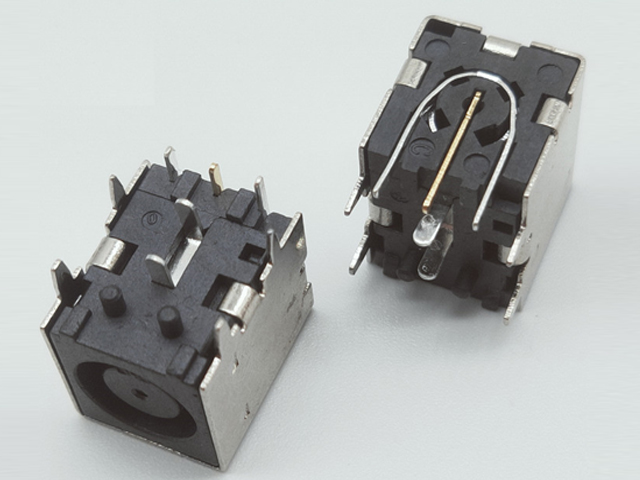

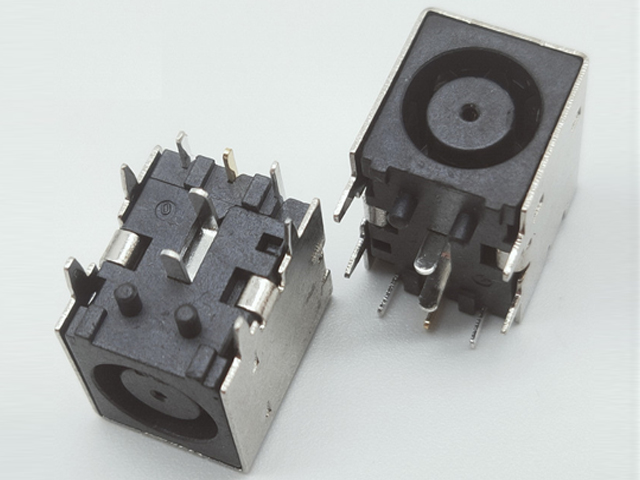

20V 10A DC Jack DIP

  • Model: KLS1-MDC-049
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SPECIFICATION
Rated Load: DC 20V 10A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC150V
Actuating Force: 3~30N
Life: 5000 cycles
Operating Temperature: -25ºC ~ 85ºC
