P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||

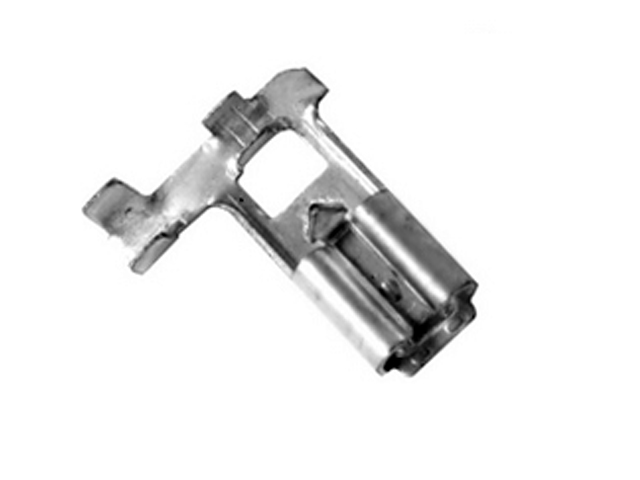

L-KLS8-CFV01-2050800 | Brass | Tin | 6.50 | 6.4 | 16.5 | 0.40 | 18~22 | 5000 | TAB=0.8mm |
P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
L-KLS8-CFV01-2050800 | Brass | Tin | 6.50 | 6.4 | 16.5 | 0.40 | 18~22 | 5000 | TAB=0.8mm |
