2.5×3.0 SMD Tactile Switch

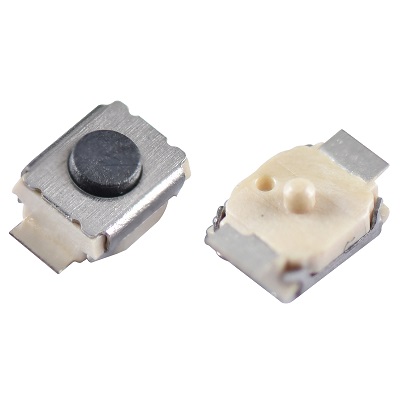

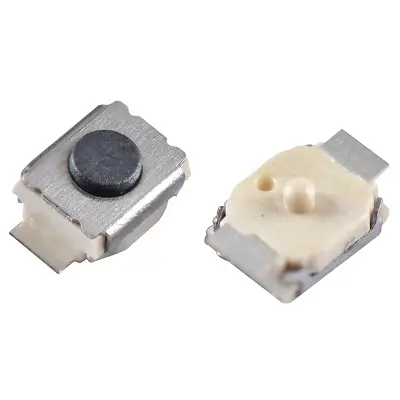

KLS7-TS2530:With post

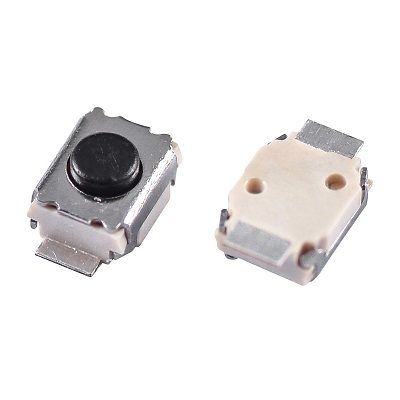

KLS7-TS2530:Without post

Material:
1.Base:LCP
2.Terminal:Phosphor Bronze,Ag plating
3.Contact:SUS,Ag plating
4.Tape:PI
5.Cover:SUS
6.Stem:LCP

Electrical:
1.Rating:DC 12V 50mA Max
2.Contact Resistance:100mΩ Max.
3.Insulation Resistance:100MΩ Min
4.Dielectric Strength:250VAC/min
5.Operating Force:160gf±50gf
6.Operating life:200000 cycles

KLS7-TS2530&KLS7-TS2530A.pdf
