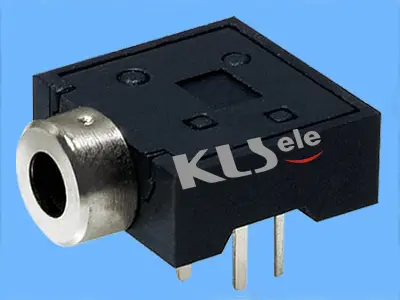

2.5mm Stereo Jack For PCB Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Terminal 1 : Brass
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 10 : Copper Alloy
Terminal 11 : Copper Alloy
Bushing Pa66
Housing : Pa66
Coverl : PA66

KLS1-TSJ2.5-007A.pdf
