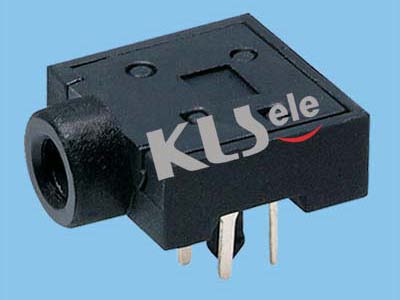

2.5mm Stereo Jack For PCB Mount

  • Model: KLS1-TG2.5-006B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.5mm Stereo Jack For PCB Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Terminal 1 :Brass
Terminal 2 :Copper Alloy
Terminal 3 :Copper Alloy
Terminal10 :Copper Alloy
Terminal 1l :Copper Alloy
Bousing :Pa66
Housing :Pa66
Cover :Pa66
