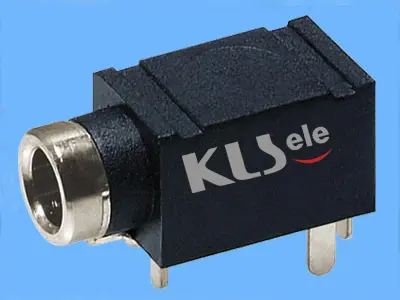

2.5mm Stereo Jack For PCB Mount

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Terminal 1 :Brass
Terminal 2 :Copper Alloy
Terminal 3 :Copper Alloy
Terminal 4 :Copper Alloy
Bushing :Brass
Housing :PBT

KLS1-TSJ2.5-005.pdf
