Order Information

KLS7-DM-02-N-10

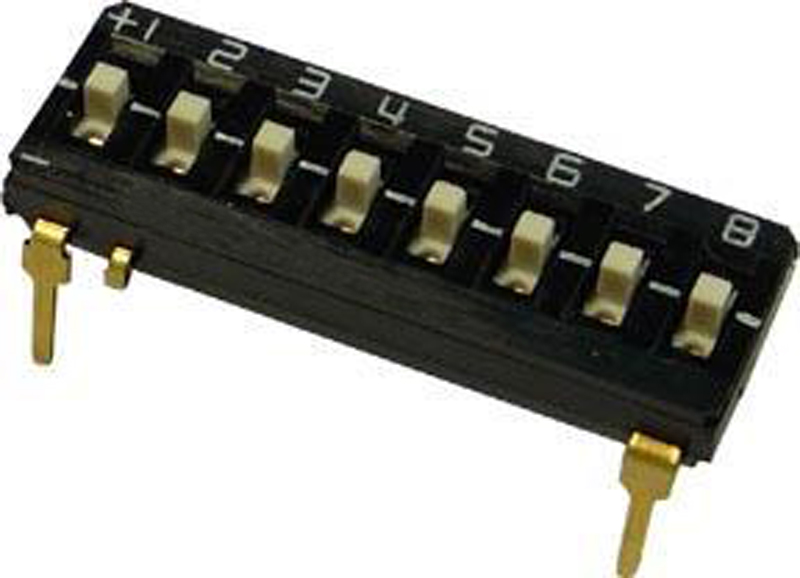

EM:     2.54mm Tri-state DIP Switch Through Hole type
02:      Number of Pos.     4\5\8\9\10Pos.
N:        Color Code:    N-Black
0:        0-Non-sealed
0:        Packing Code      0- Tube Packing
Specifications
  Contact Rating:                25 mA at 24VDC(switching)
100 mA at 50VDC(steady state)
Life:                                    2,000 cycles
Contact Resistance:        100mΩ Max.
Insulation Resistance:     100MΩ at 100VDC Min
Dielectric Strength:          300VAC Min

Materials
Base & Cover:   PPS (UL94V-0)
Actuator:            PA46 (UL94V-0).
Contacts:           Brass, Gold /Tin Plate
Terminals:          Brass, Gold /Tin Plate
