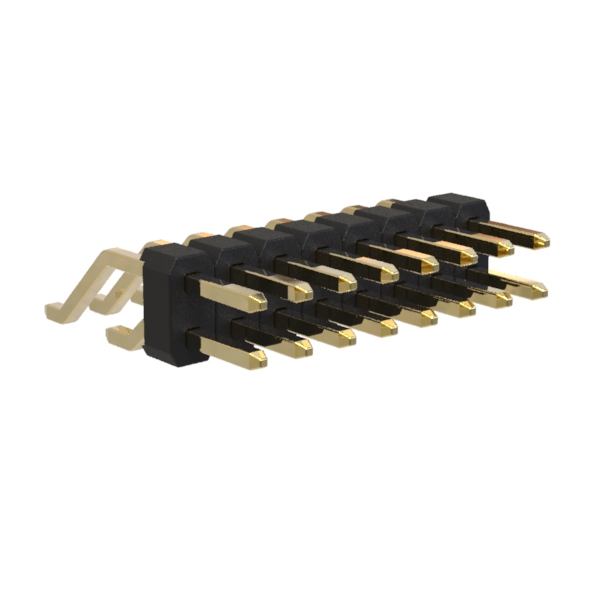

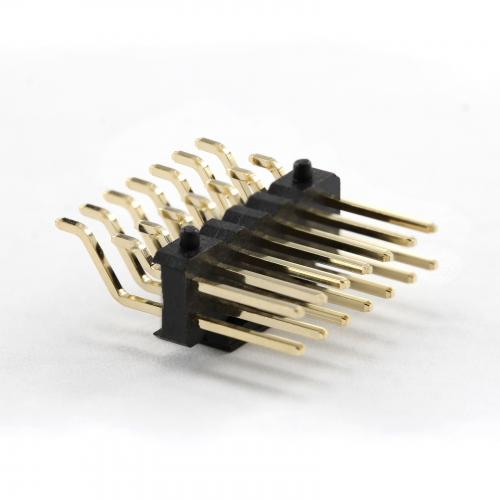

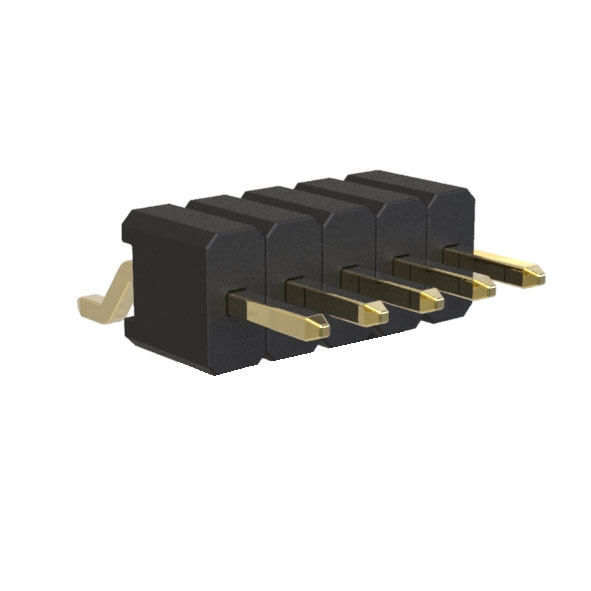

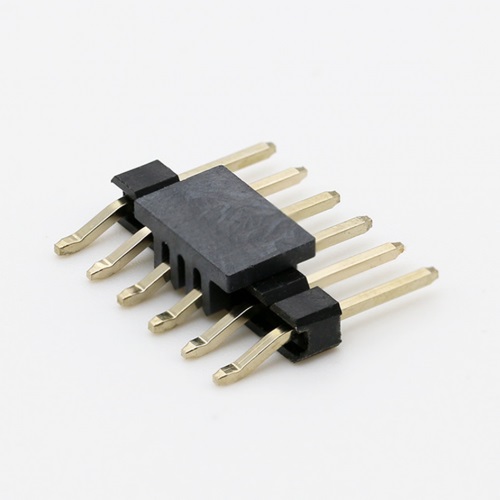

2.54mm Pitch Pin Header Connector

Order Information
KLS1-207A-1-XX-PA*PC*PB-G0-W-R
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
SIZE:PA*PC*PB
Plating:G0=Gold Flash G1=1u” Gold G10=10u” Gold G15=15u” Gold G30=30u” Gold
N=W/O post W=with post
Packing: 0=PE Bag A=Tray T=Tube P=Tube+Cap R=Reel+Cap

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
