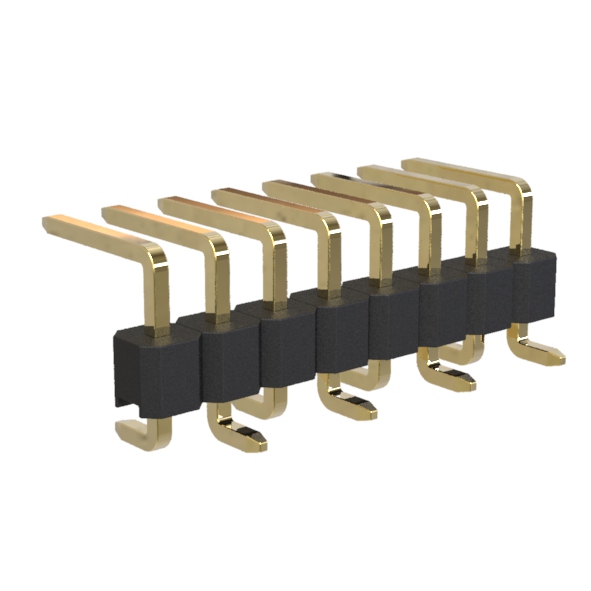

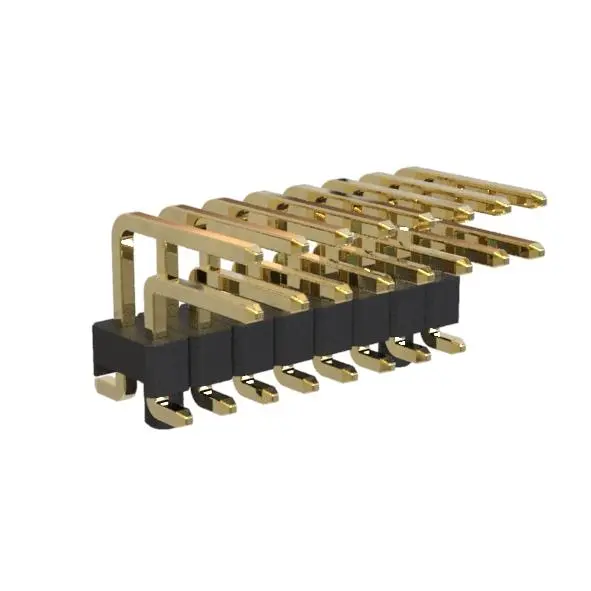

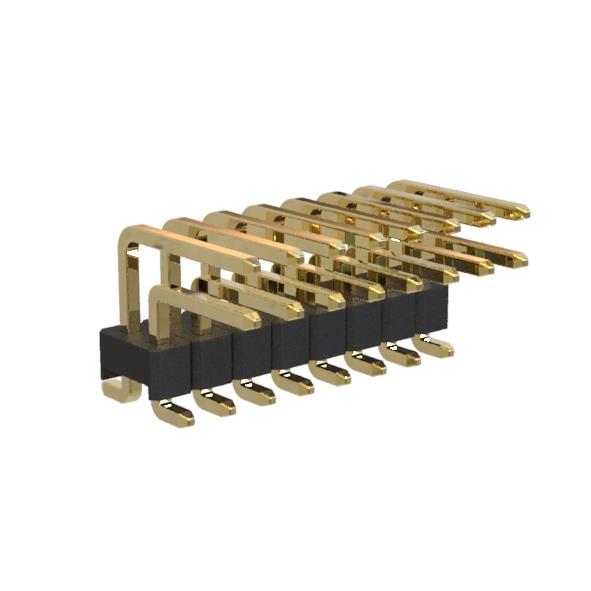

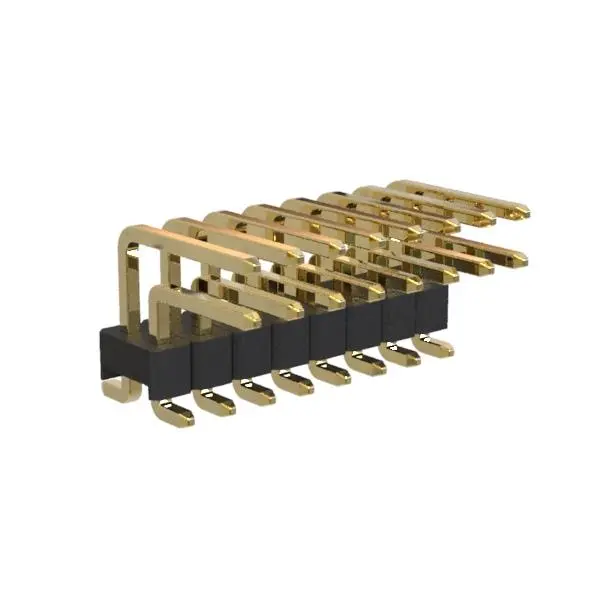

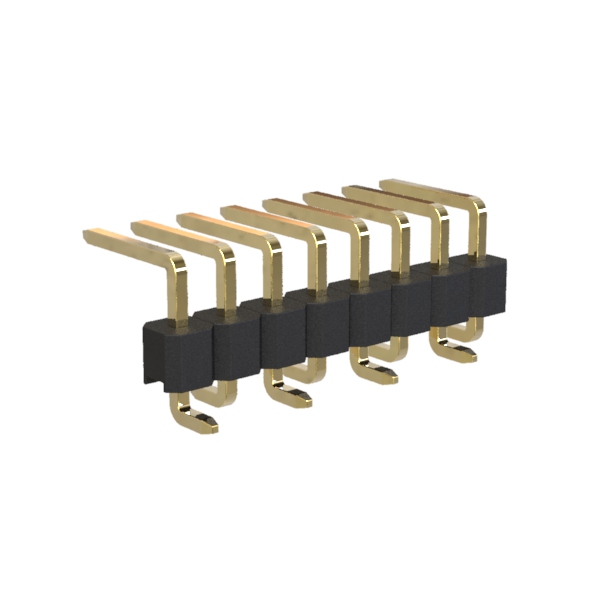

2.54mm Pitch Pin Header Connector SMD

  • Model: KLS1-207AB
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.54mm Pitch Pin Header Connector SMD

Order Information
KLS1-207AB-1-XX-T1-L1*L2*L3*W-G0-N-R
1-Single layer  2-Double layer
XX-Total pin number  (No.of 2~80pin)
SMT Pin:T1 or T2
Size: L1*L2*L3*W
Plating: G0=Gold Flash   G1=1u” Gold  G10=10u” Gold  G15=15u” Gold   G30=30u” Gold
Post:  W=With post  N=W/O post
Packing: 0=PE Bag    A=Tray    T=Tube P=Tube+Cap   R=Reel+Cap

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
