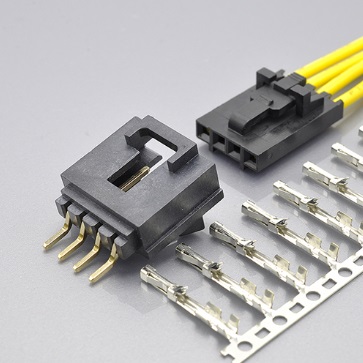

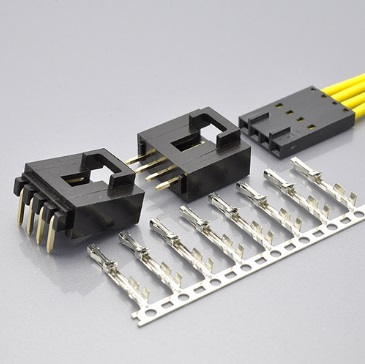

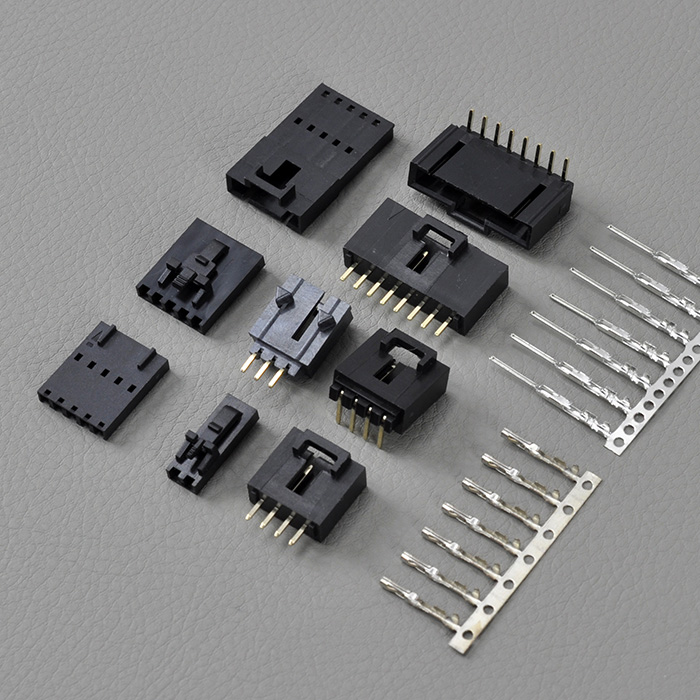

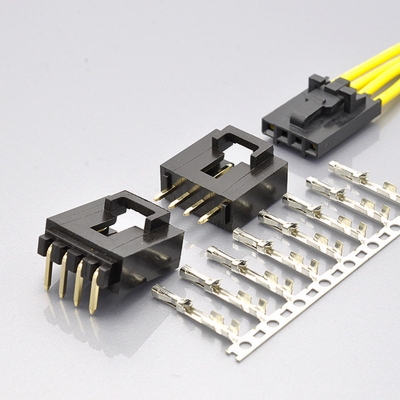

2.54mm Pitch Molex SL Modular 70107 171971 70543 70553 70555 70058 70066 Wire To Board Connector

  • Model: KLS1-XL2-2.54
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.54mm Pitch Molex SL Modular 70107 171971 70543 70553 70555 70058 70066 Wire To Board Connector

Order information:
KLS1-XL2-2.54-XX-MH
Pitch:2.54mm
XX-No.of 02~20 pins
MH FH-Housing  MT FT-Terminal  S-Straight male pin  R RW-Right angle male pin  VM-Vertical SMT Pin RM-Horizontal SMT Pin

Specifications
◆Material: PA66/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#22~#28
