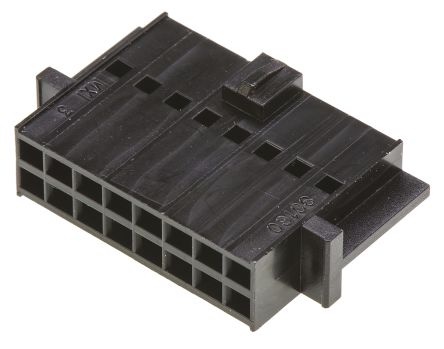

2.54mm Pitch Molex C-Grid III 90142 90143 90136 Wire To Board Connector
- Product Details
2.54mm Pitch Molex C-Grid III 90142 90143 90130 Wire To Board Connector
Order information:
KLS1-XL7-2.54-XX-H1
Pitch:2.54mm
XX-No.of 04~64 pins

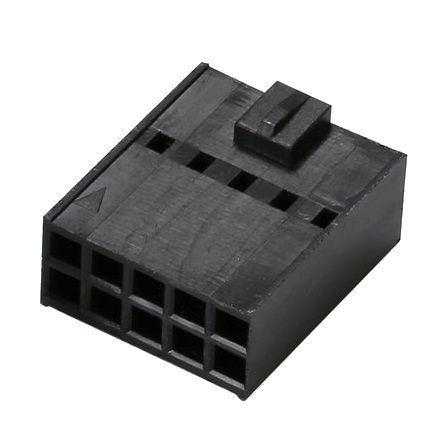

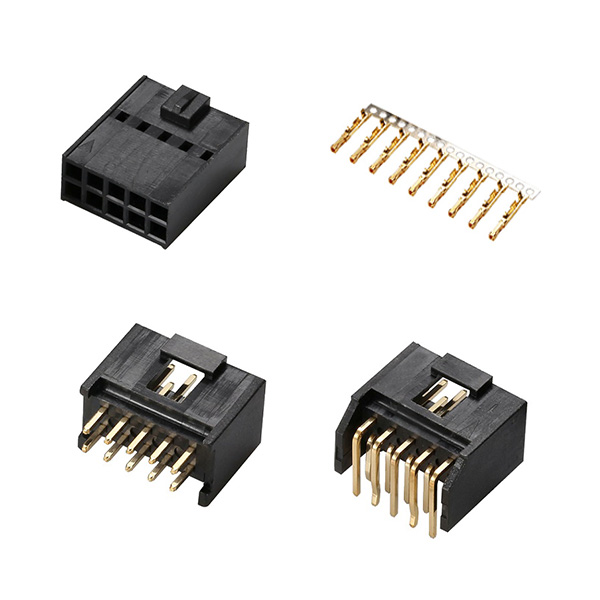

H1 H2 H3 H4-Housing T-Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PBT UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#26
