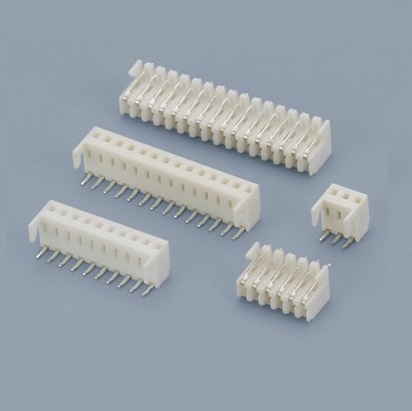

2.54mm Pitch Molex Board To Board Connector
Order information:
KLS1-2.54B-XX-AW
Pitch:2.54mm
XX-No.of 02~16 pins
AW BW-Straight male pin  DW-Right angle male pin

Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2.5A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.

KLS1-2.54B.pdf
