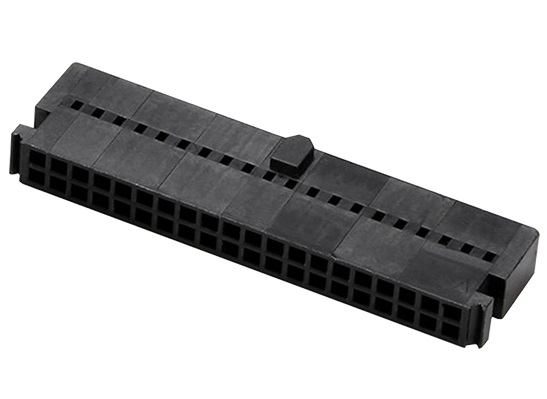

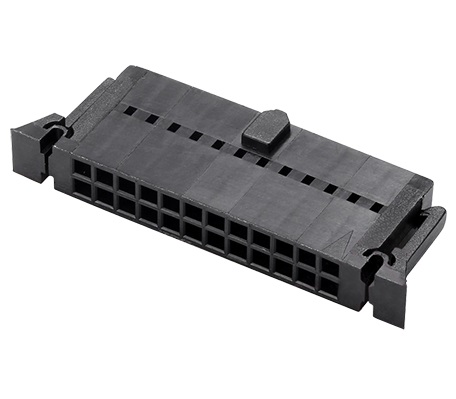

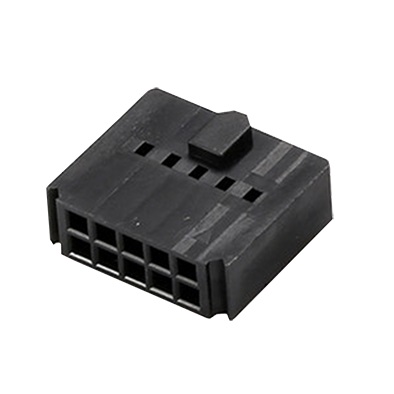

2.54mm Pitch Molex 70450 Wire To Board Connector
Order information:
KLS1-XL8-2.54-XX-H1
Pitch:2.54mm
XX-No.of 04~64 pins
H1 H2 H3-Housing T-Terminal
Specifications
◆Material: PBT UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#30
