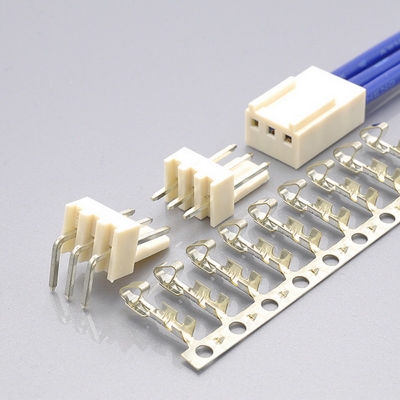

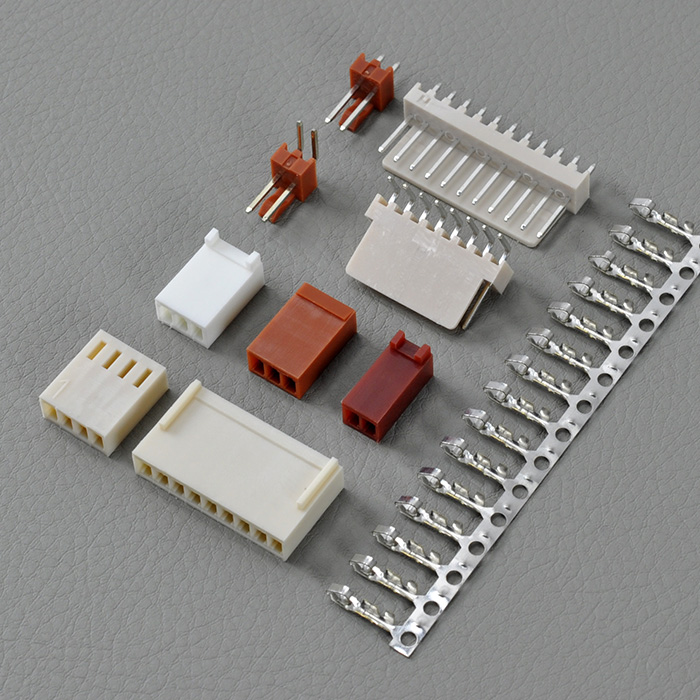

2.54mm Pitch MOLEX 2510 Wire To Board Connector

Order information:
KLS1-2.54-XX-H
Pitch:2.54mm
XX-No.of 02~20 pins
H-Housing  T-Terminal  S-Straight male pin  R R1 R2-Right angle male pin

Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:4.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range  : AWG#24~#32

KLS1-2.54.pdf
