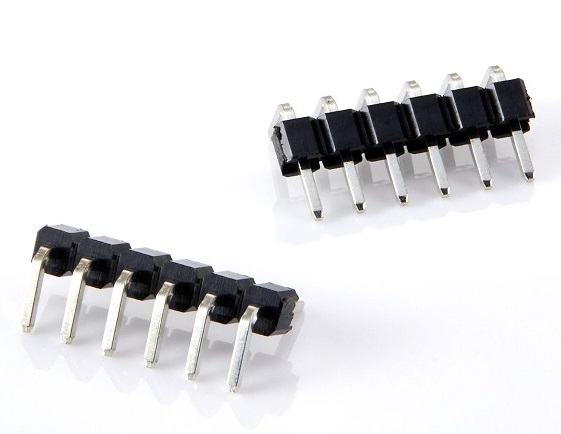

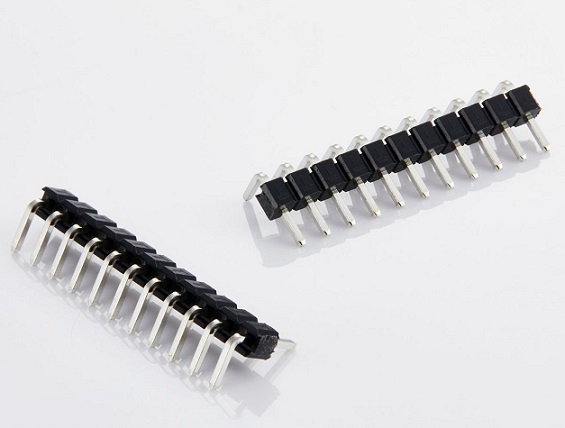

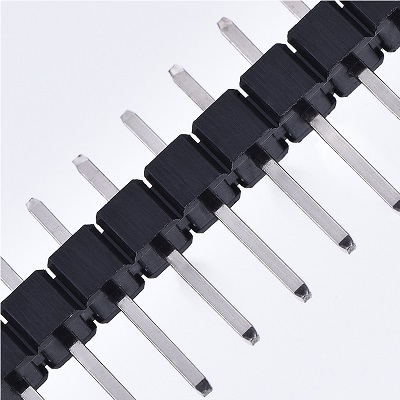

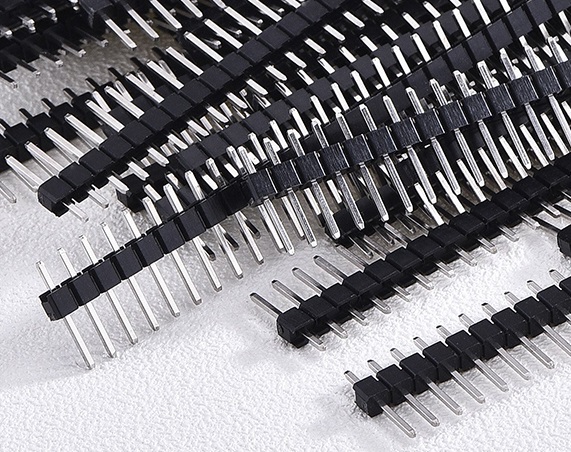

2.54mm Pitch Pin Header Connector

Order Information
KLS1-207-2.50-1-XX-S-L1*L2*L3-SN
Plastics Height:2.50mm
1-Single layer  2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin  R-Right Angle Pin  T-SMT Pin
Size: L1*L2*L3
SN-Plating Tin

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Plated Tin over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
