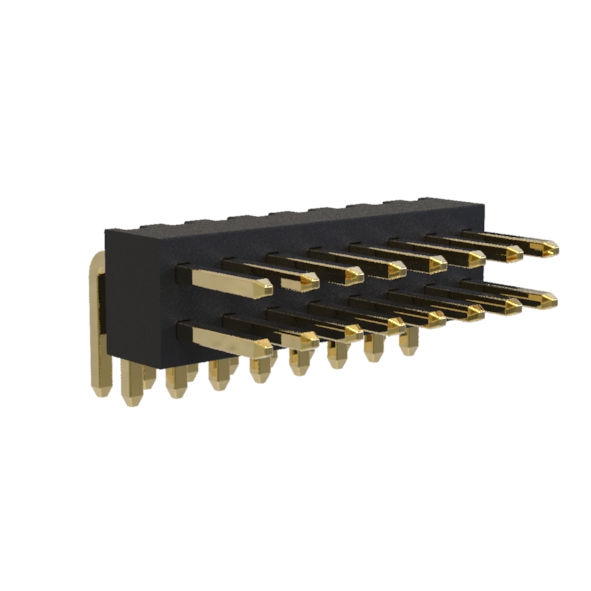

2.54mm Pitch Pin Header Connector H4.3mm

Order Information
KLS1-207L-2-XX-S-L1*L2*L3-G0
2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin  R-Right Angle Pin  T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash   G1=1u” Gold  G10=10u” Gold  G15=15u” Gold   G30=30u” Gold

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC

KLS1-207L.pdf
