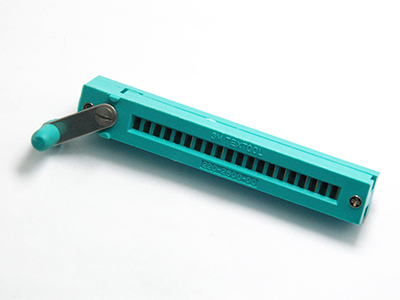

2.54mm Pitch In-Line ZIP Strip Socket Connector

Order Information
KLS1-108F-20
20-No.of 20pin

Parameters:
Insulation Material: Glass Filled +PBT UL 94V-0
Color: Green
Contact Material: phosphor Copper
Plated: Gold plated 3u” over Nickel 50u”
Current Rating: 1 Amp
Insulation Resistance: 5000MΩ at 500 VDC
Temperature Rating: – 55°C ~+105°C

KLS1-108F.pdf
