2.54mm Pitch IDC Socket Connector
- Product Details

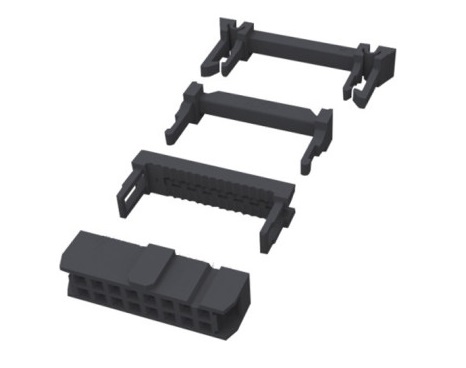

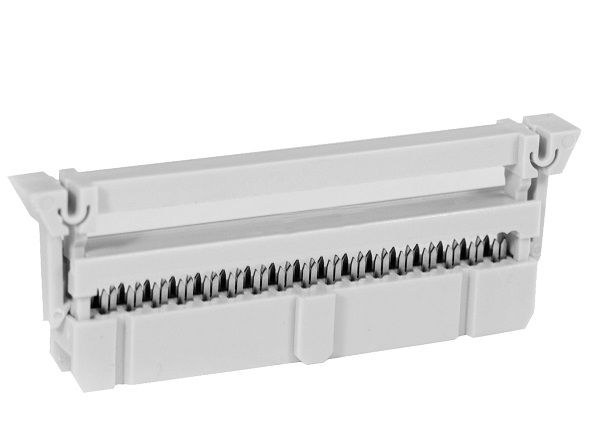

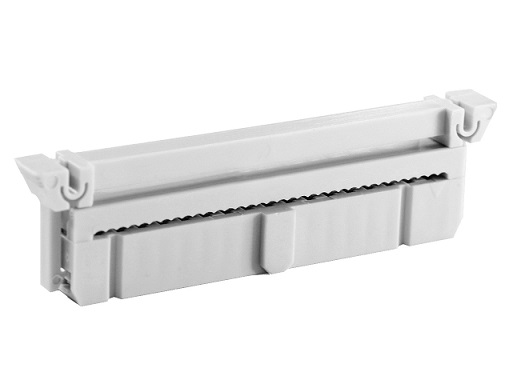

2.54mm Pitch IDC Socket Connector
Order Information:
KLS1-204AB-XX-B
XX-No.of 06~50pins
Color: B=Black G=Gray L=Blue
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Plating:Au or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
