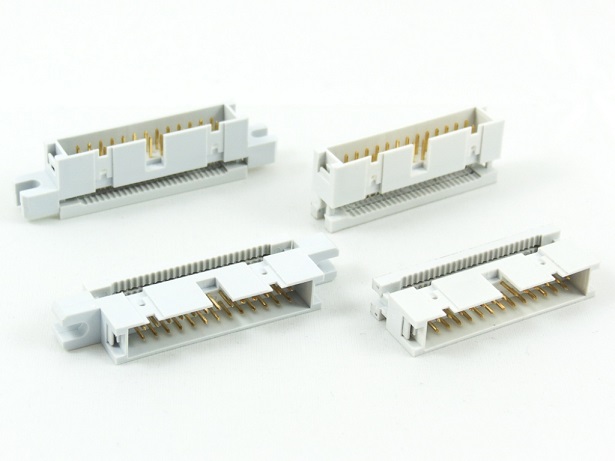

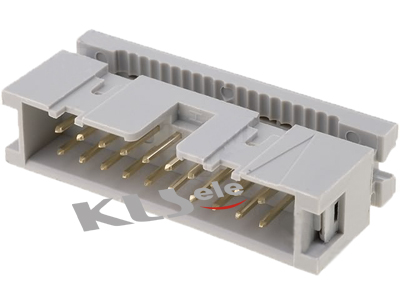

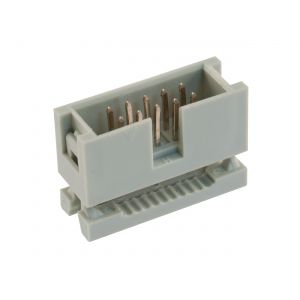

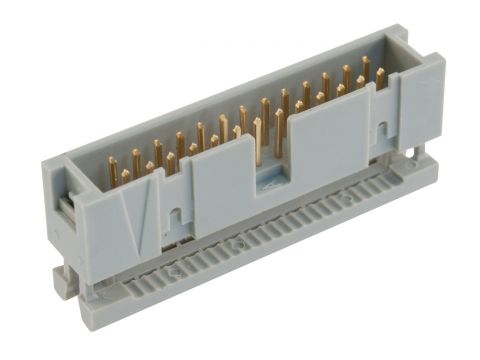

2.54mm Pitch IDC Box Header Connector

Order Information:
KLS1-201Z-XX-G-E
XX-No.of 06~64pin
B-Black   G-Gray
E-With ears   N-Without ears

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Au or Sn Over Ni
Cable: 1.27mm (0.050″) pitch flat cable
Electrical Characteristics:
Current Rating: 3.0 AMP
Withsstand Voltage:500V AC
Insulator Resistance: 1000M Ohm min
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-201Z.pdf
