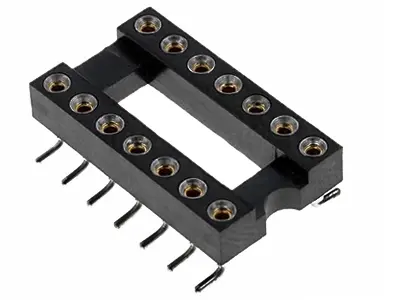

2.54mm Pitch IC Socket Connector SMT Type

Order Information
KLS1-217T-XX-Z-3
XX-No.of 06~48pin
Y-Imported Beryllium copper Z-Domestic Phosphor Bronze
B Size:1=7.62mm 3=15.24mm

Material:
Housing: PBT UL94V~0
Contacts:Beryllium copper or Phosphor Bronze
Plating:Au 2u” or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at 100V AC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
