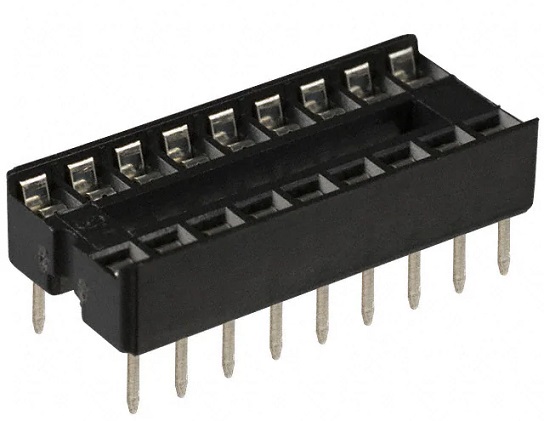

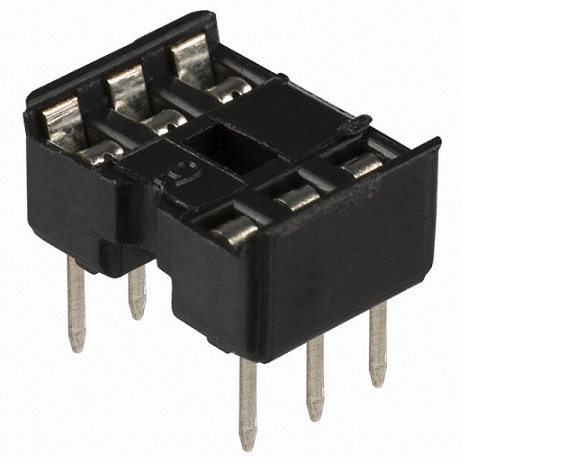

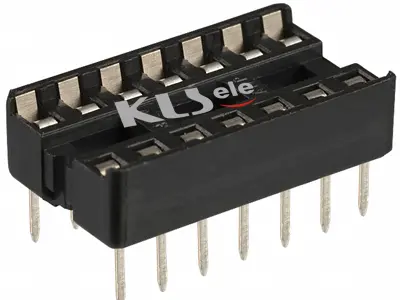

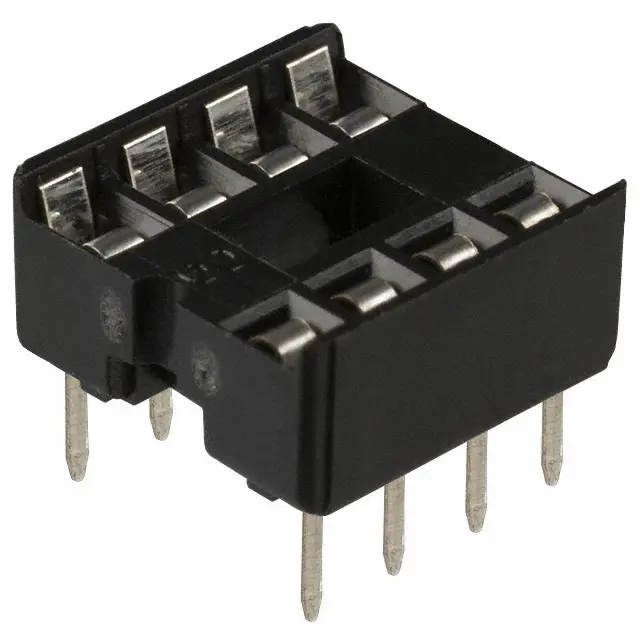

2.54mm Pitch IC Socket Connector

Order Information
KLS1-216-XX-D
XX-No.of 06~48pin
With D =15.24mm or Without D =7.62mm

Material:
Housing: PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Tin plated 100u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 5000M Ohm min
Contact Resistance: 20mΩmax.
Operating Temperature: -45ºC~+105ºC
