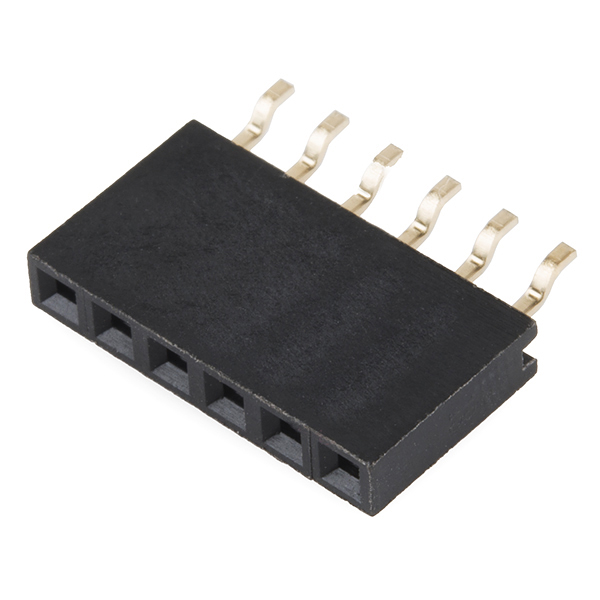

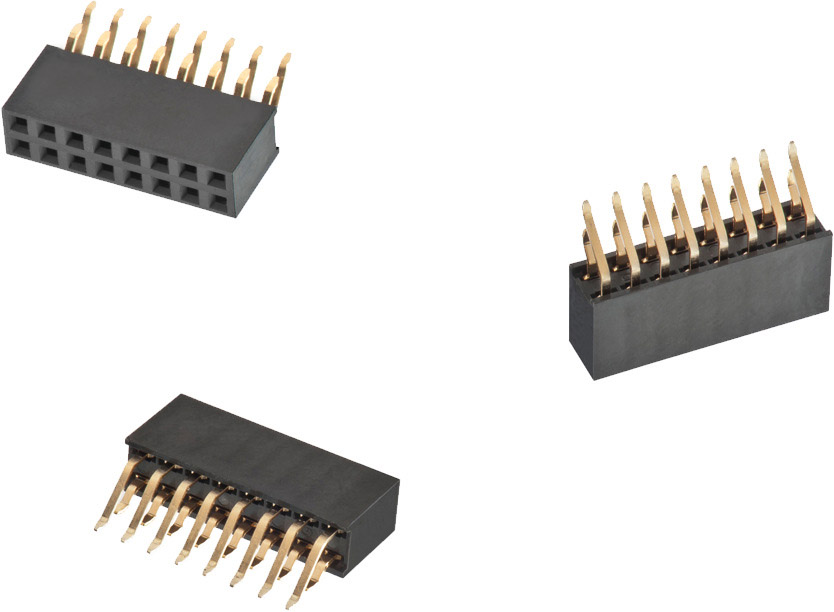

2.54mm Pitch Female Header Connector Height 8.5mm SMT

Order Information
KLS1-208G-1-XX-TR-L1xL2-B

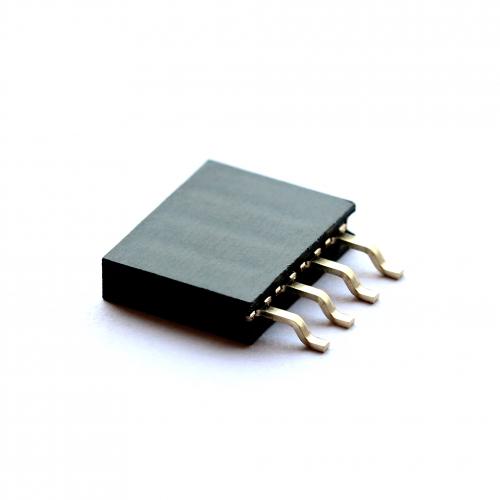

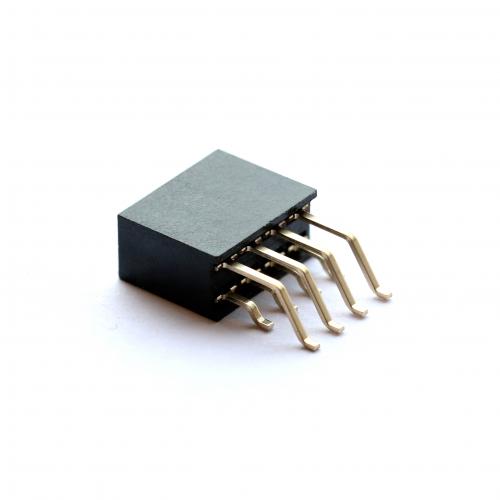

1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~80pin)
TR-SMT Pin
Size:L1xL2
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
