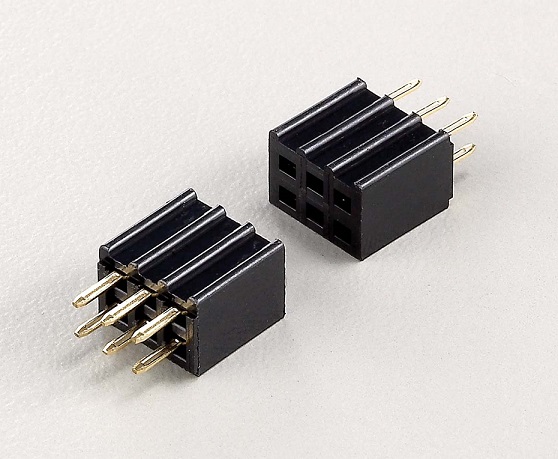

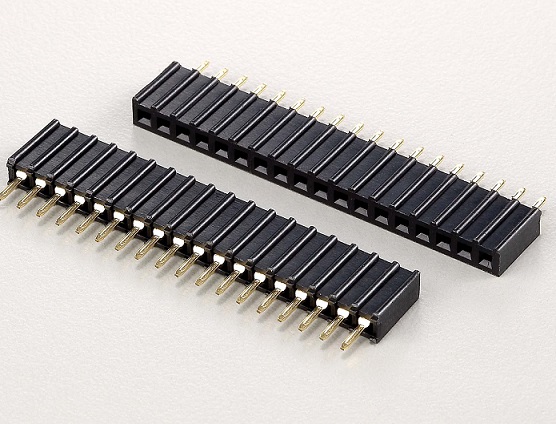

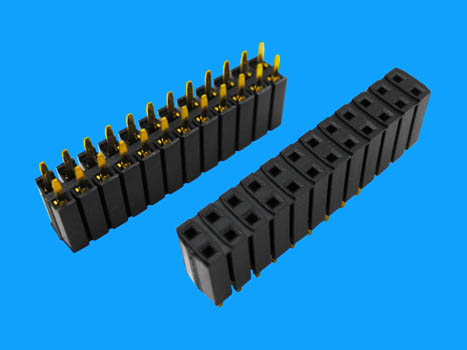

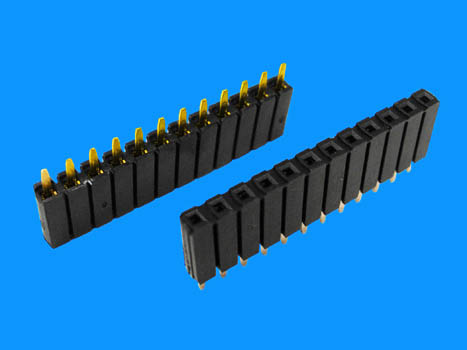

2.54mm Pitch Female Header Connector Height 8.5mm Bottom Entry

Order Information
KLS1-208V-1-XX-S-A
1-Single layer   2-Double layer
XX-Total pin number  (No.of 1~80pin)
Straight Pin-S & S1   Bottom Entry-W & W1
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-208V.pdf
