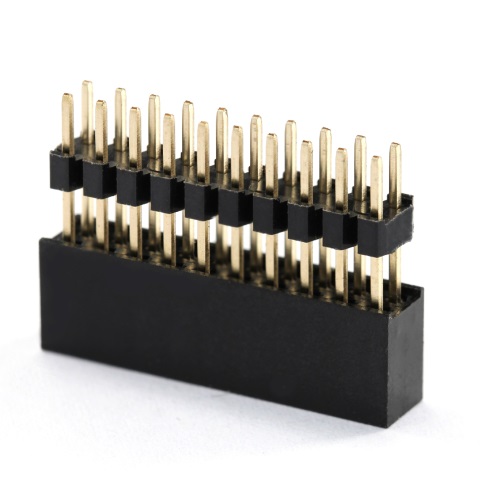

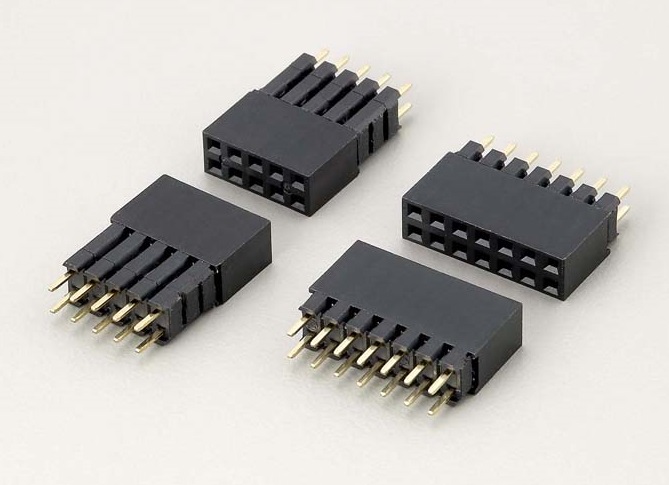

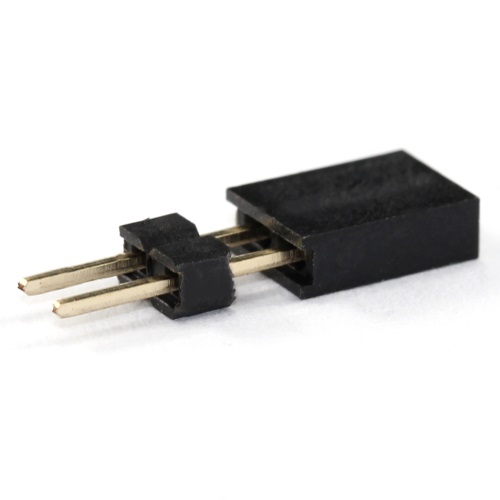

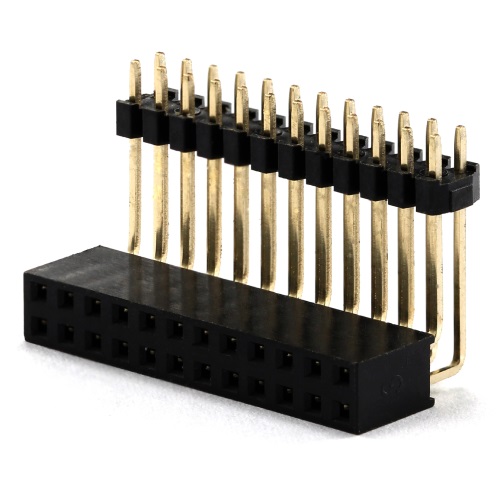

2.54mm Pitch Female Header Connector

Order Information
KLS1-208X-1-XX-S-L1xL2-A
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP

Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
