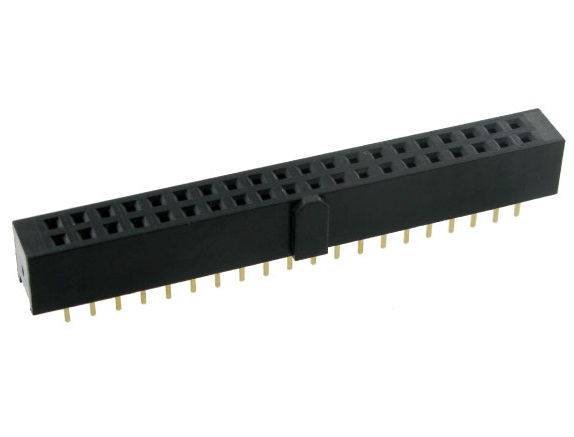

2.54mm Pitch Female Header Connector Height 8.5mm

Order Information

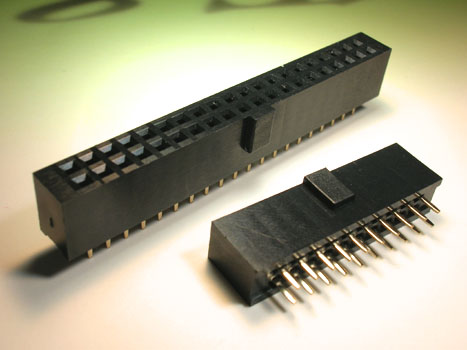

KLS1-219X-2-XX-S-A
Type-219X,219Y
2-Double layer
XX-Total pin number  (No.of 1~80pin)

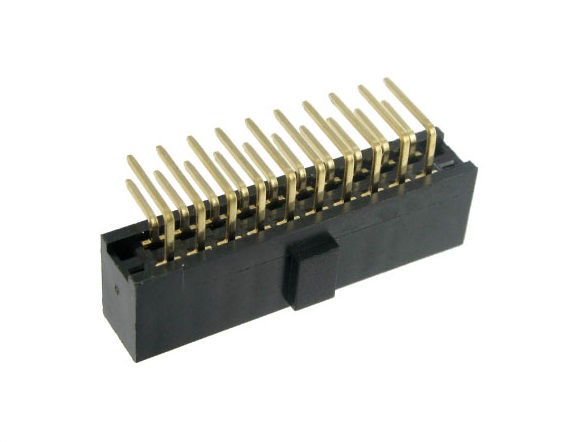

S-Straight Pin   R-Right Angle Pin   T-SMT Pin
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-219X&KLS1-219Y.pdf
