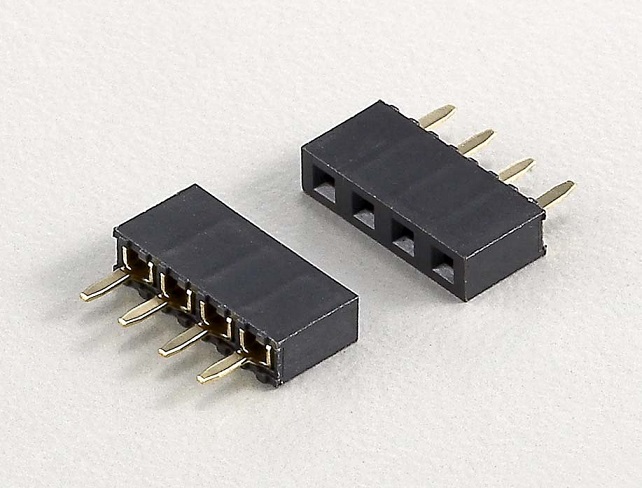

2.54mm Pitch Female Header Connector Height 5.0mm

  • Model: KLS1-208Y-5.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.54mm Pitch Female Header Connector Height 5.0mm

Order Information
KLS1-208Y-5.0-2-XX-T-B
Height: 5.0mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 1~80pin)
S-Straight Pin   R-Right Angle Pin   T-SMT Pin
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
