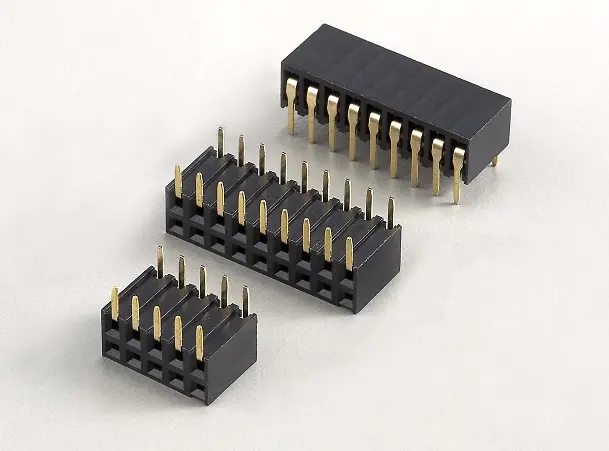

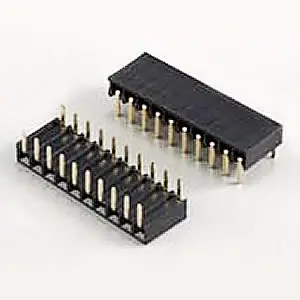

2.54mm Pitch Female Header Connector Height 3.4mm & 5.9mm Side Entry
- Product Details
Order Information
KLS1-208A-8.1-1-XX-R-B
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
R-Right Angle Pin T-SMT Pin
Material_A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
