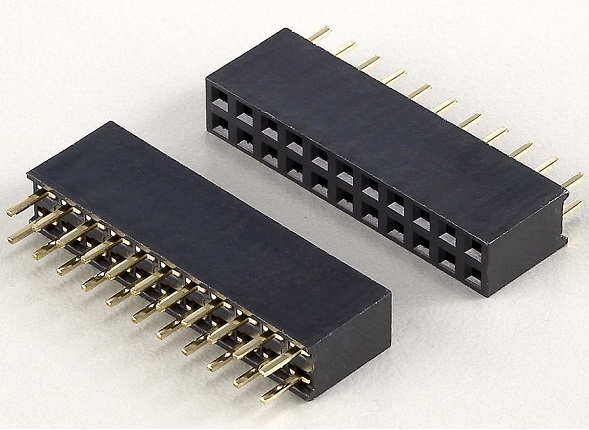

2.54mm Pitch Female Header Connector Height 7.1mm U terminal

Order Information
KLS1-208-11.0-2-XX-S
11.0-Plastics height 11.0mm
2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin     T-SMT Pin

Material:
Housing: 30% Glass filled PBT  UL94V-0
Contacts: Brass
Plating: Au or Sn over 50u” Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-208-11.0-2-10-S.pdf
