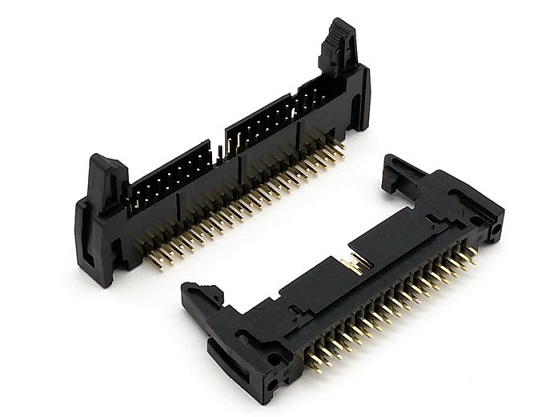

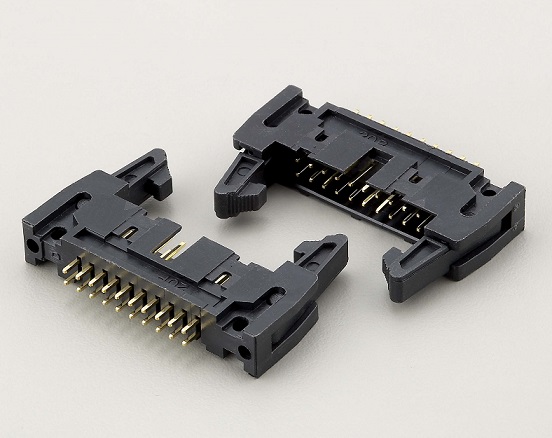

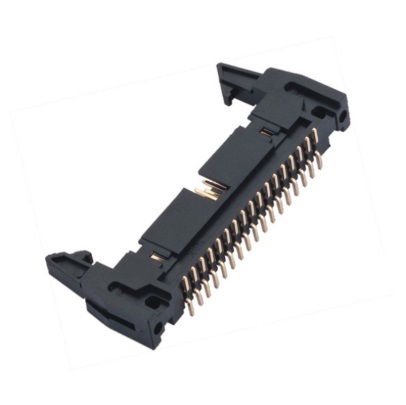

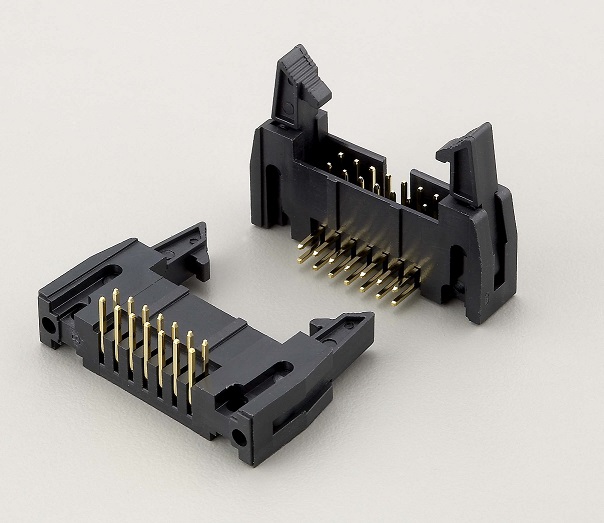

2.54mm Pitch Box Header Connector With Latch

Order Information:
KLS1-201-XX-S-B-口-口
XX-No.of 06~64 pin
S-Straight pin  R-Right Angle Pin  T-SMT Pin
Color: B=Black  G=Gray
None=Long latch  S=Short latch
Material_NONE=PBT  B=PA6T

Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC/DC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC

KLS1-201.pdf
